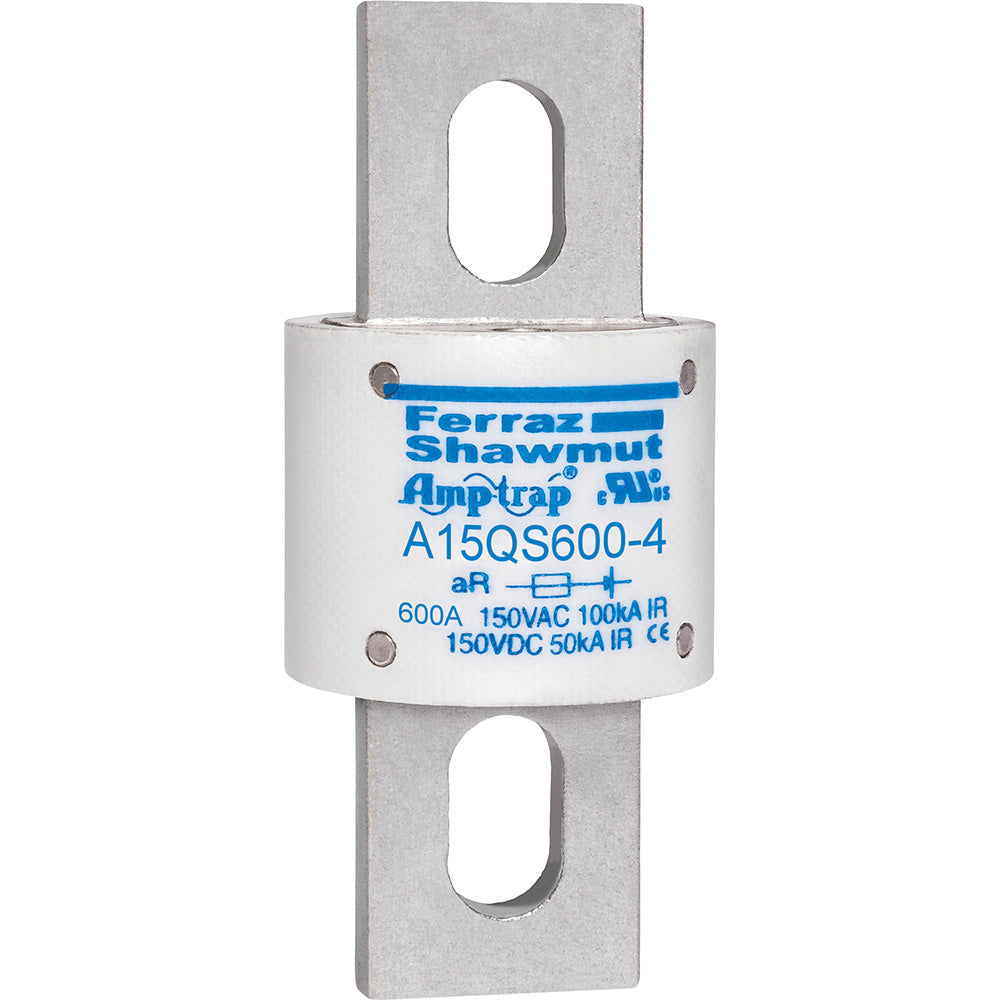

Cutler Hammer A15QS600-4 - Low Voltage Current-Limiting Fuse 600A (100kA AIC @ 150V)

The Cutler Hammer A15QS600-4 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical systems. It features a 600A current rating and a 150V voltage rating, capable of interrupting up to 100kA of fault current. The fuse is constructed as a single-barrel unit with a 1.5-inch diameter and a weight of 2 lb, ensuring a robust and compact design. This component is certified to UL, CSA, CCC, and IEC standards, guaranteeing compliance with rigorous international safety requirements. It is typically applied in industrial power distribution systems, motor control centers, and service entrance equipment to safeguard against damaging overcurrents.

Key Features & Specifications

• Type: Amp-Trap A15QS, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 150V AC
• Current Rating: 600A
• Dimensions: 1.5-inch Diameter
• Standards: UL, CSA, CCC, IEC
• Applications: Industrial Power Distribution, Motor Control Centers, Service Entrance Equipment
• AIC rating: 100kA @ 150V
• Certification: UL, CCC, CSA, IEC
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 78200128815
• GTIN: 00782001288150
