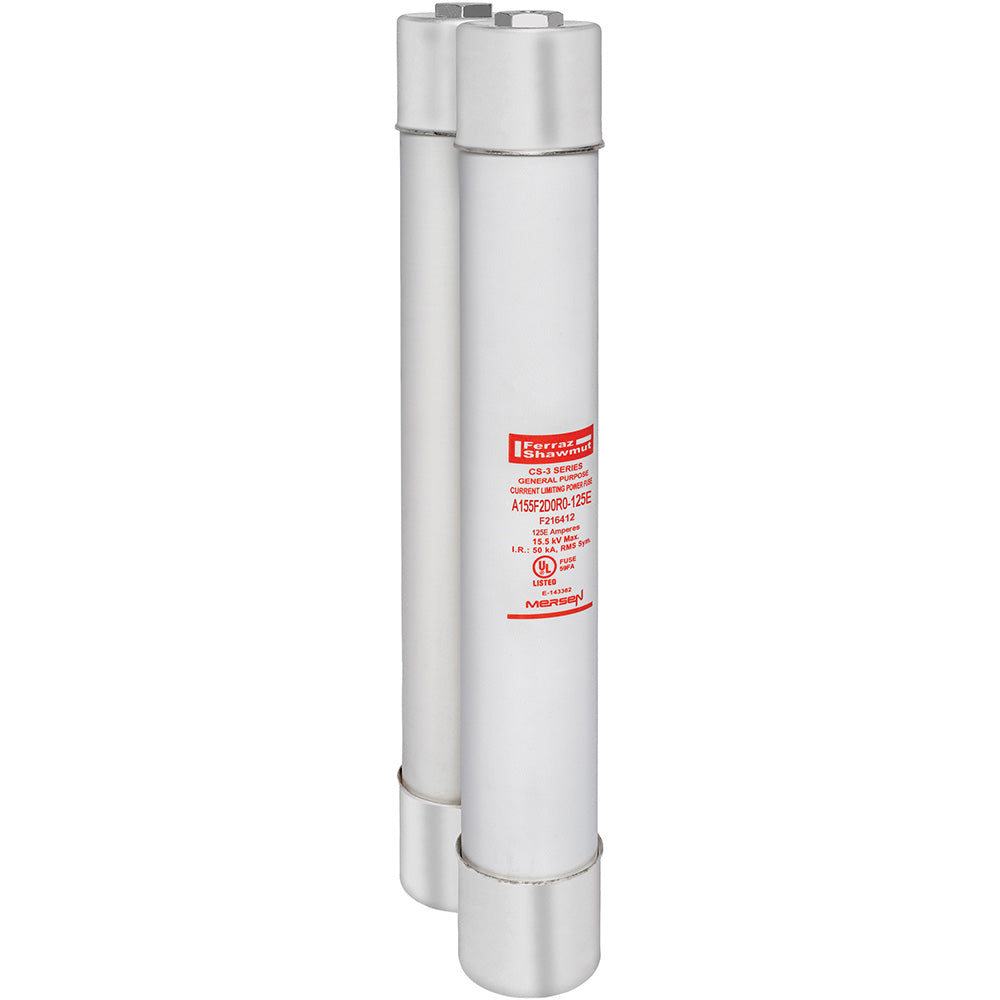

Mersen A155F2D0R0-125E - Medium Voltage Fuse 15.5kV/125A (50kA AIC Rating)

Mersen A155F2D0R0-125E is a medium voltage fuse designed for high-voltage circuit protection in industrial power systems. This Class E fuse features a 15.5kV voltage rating and 125A current rating, with a robust 2-barrel construction measuring 21-3/4" in length and 3" in diameter. Compliant with industry standards, it offers 50kA interrupting capacity at 15.5kV for reliable fault protection in demanding applications such as transformer protection and power distribution networks.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating
• Voltage Rating: 15,500V AC
• Current Rating: 125A
• Dimensions: 21-3/4" length x 3" diameter
• Weight: 26 lb
• Standards: Meets industry requirements for medium voltage protection
• Applications: Transformer protection, power distribution systems
• AIC rating: 50kA @ 15.5kV
• Barrels: 2
• Clip Center: 18"
• Family: CS-3 Series

Product Identification

• UPC: 782001804695
• GTIN: 00782001804695
