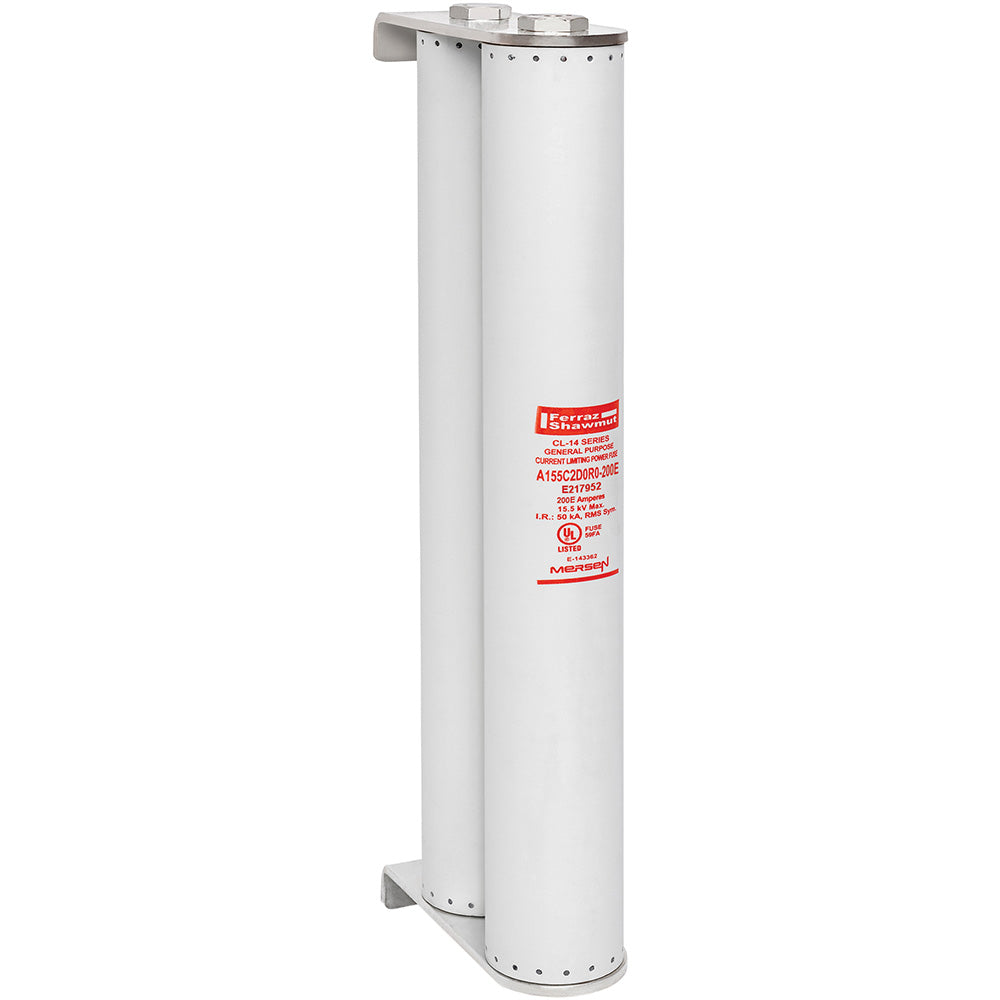

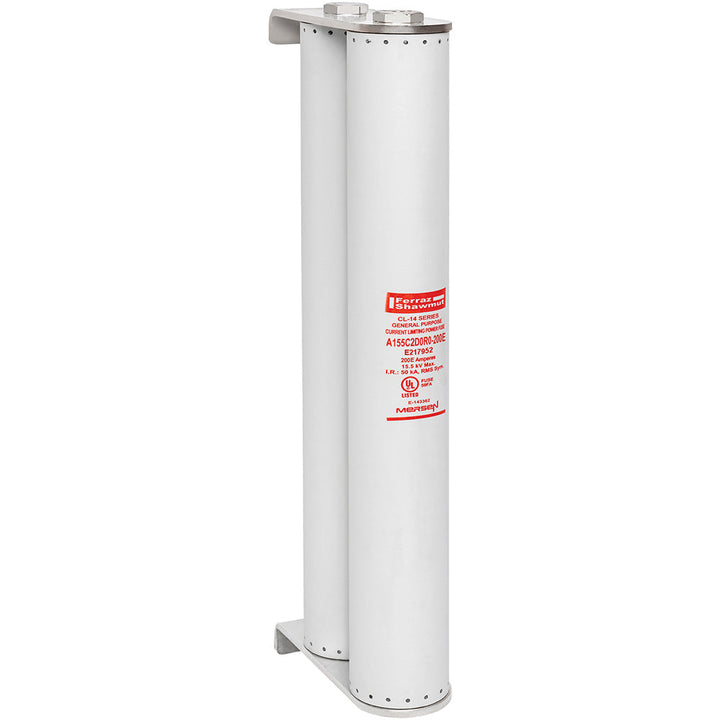

Mersen A155C2D0R0-200E - Medium Voltage Current-Limiting Fuse 200A (15.5kV, 50kA AIC)

Mersen A155C2D0R0-200E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This Class E fuse provides 200A current protection with a 15.5kV voltage rating and features a dual-barrel construction with 50kA interrupting capacity at 15.5kV. The fuse measures 4.31 inches in diameter with 21.25-inch clip center spacing and weighs 28 lb, built to withstand demanding electrical environments. It complies with industry standards for medium voltage protection and is typically deployed in industrial power distribution, motor protection, and transformer circuits where reliable high-voltage interruption is critical.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, dual-barrel construction, Class E rating
• Voltage Rating: 15,500V AC
• Current Rating: 200A
• Dimensions: 4.31-inch diameter, 21.25-inch clip center spacing
• Standards: Industry standard medium voltage protection
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: [email protected]
• Barrels: 2
• Class Rating: E
• Diameter: 4.31 inches
• Clip Center: 21.25 inches
• Mounting: Standard fuse clip

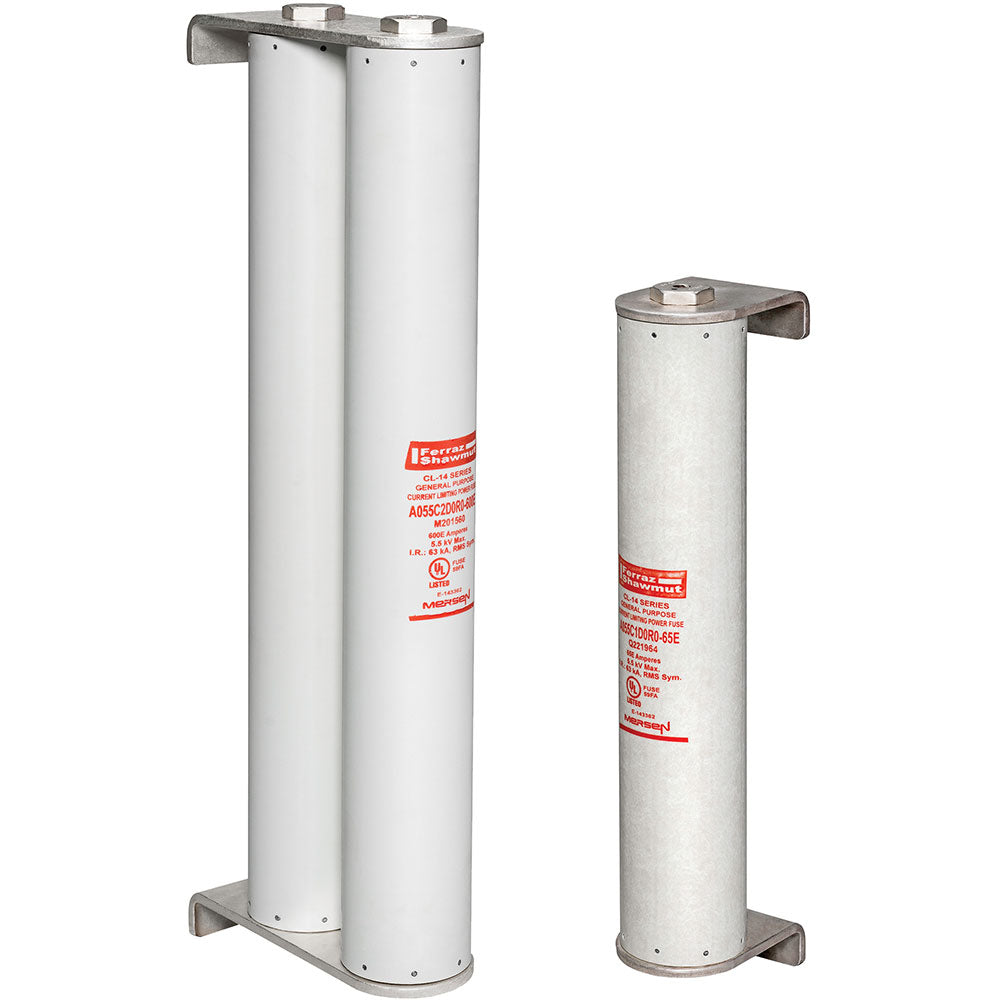

• Family: CL-14 Series
• Weight: 28 lb

Product Identification

• GTIN: 00782001802707
