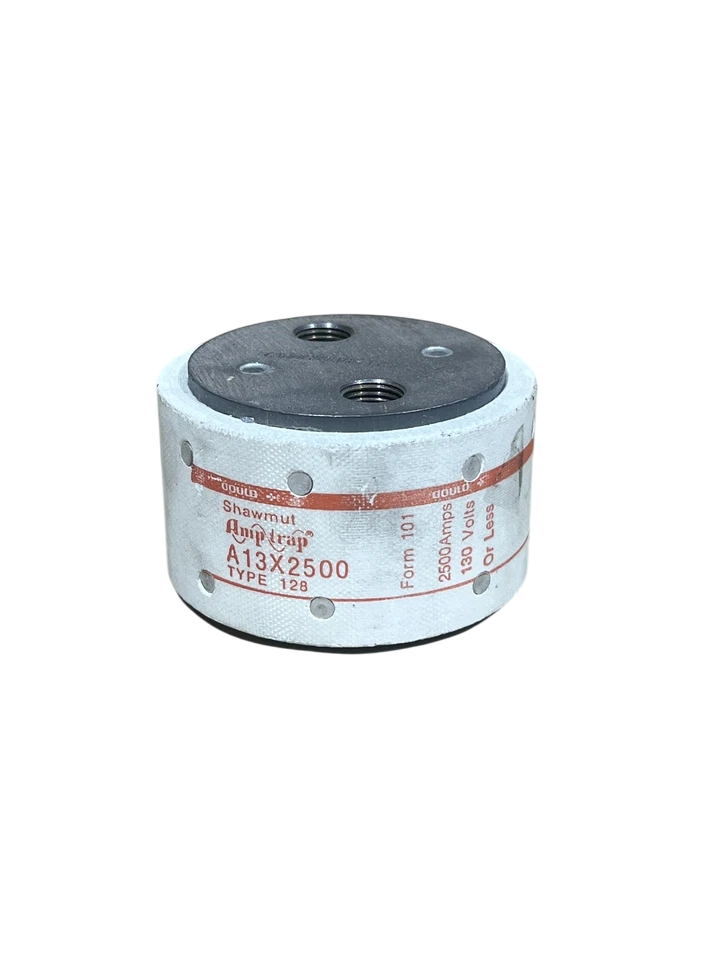

Mersen A13X2500-128 - Low Voltage Fuse 2500A (130V AC, 8kA AIC)

Mersen A13X2500-128 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for very fast-acting circuit protection in high-current applications. It features a 130V AC voltage rating and 2500A current rating with an 8kA interrupting capacity, housed in a compact 3" diameter bolt-in configuration with Hock Puck connection. The single-barrel VFA (Very Fast Acting) construction provides rapid fault clearing, meeting industrial protection standards for electrical distribution systems. Typical applications include switchgear, motor control centers, and other heavy-duty equipment requiring reliable short-circuit protection.

Key Features & Specifications

• Type: A13X series current-limiting fuse, very fast-acting (VFA)
• Voltage Rating: 130V AC
• Current Rating: 2500A
• Dimensions: 3" diameter
• Standards: Industrial protection standards
• Applications: Switchgear, motor control centers, electrical distribution
• Connection: Hock Puck bolt-in
• Barrels: 1
• AIC rating: 8kA@130Vac
• Weight: 3 lb

Product Identification

• UPC: 78200194175
• GTIN: 00782001941758
