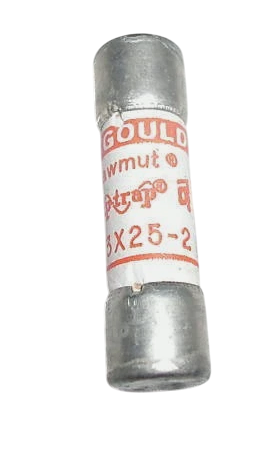

Mersen A13X25-2 - Low Voltage Fuse 25A@130V (8kA AIC, VFA)

Mersen A13X25-2 is a low-voltage fuse designed for circuit protection in industrial applications. This Amp-Trap series fuse features a 130V AC rating with a 25A current capacity and 8kA interrupting capacity, housed in a compact 0.41-inch diameter ferrule-mounted design. Its very fast-acting (VFA) velocity characteristic provides rapid response to overcurrent conditions, constructed with durable materials for reliable performance. The fuse meets industry standards for low-voltage protection and is commonly used in control panels, power distribution systems, and industrial machinery requiring precise overcurrent protection.

Key Features & Specifications

• Type: A13X series low-voltage current-limiting fuse with ferrule connection
• Voltage Rating: 130V AC
• Current Rating: 25A
• Dimensions: 0.41" diameter
• Standards: UL/CSA recognized
• Applications: Industrial control circuits, power distribution
• AIC rating: 8kA@130Vac
• Connection: Ferrule
• Barrels: 1
• Velocity: VFA (Very Fast Acting)
• Weight: 0.01 lb

Product Identification

• UPC: 78200194025
• GTIN: 00782001940256
