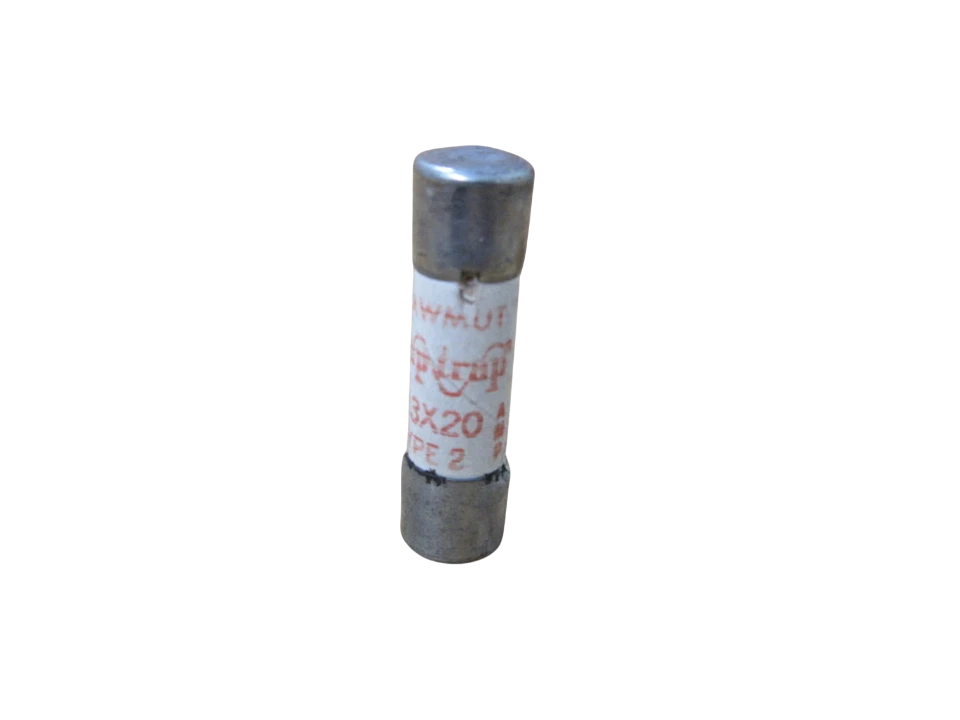

Mersen A13X20-2 - Low Voltage Fuse 20A (8kA@130VAC VFA Protection)

Mersen A13X20-2 is a low-voltage fuse designed for circuit protection in industrial applications. This Amp-Trap series fuse features a 130V AC voltage rating and 20A current rating with a very fast-acting (VFA) response time for rapid fault interruption. The compact 0.41-inch diameter ferrule-connected fuse has a single-barrel construction weighing 0.01 lb, compliant with industry standards for low-voltage protection. Its 8kA@130Vac interrupting capacity makes it suitable for protecting sensitive electronics, control circuits, and power distribution systems where fast clearing times are critical.

Key Features & Specifications

• Type: A13X low-voltage current-limiting fuse with VFA (Very Fast Acting) characteristic
• Voltage Rating: 130V AC
• Current Rating: 20A
• Dimensions: 0.41" diameter
• Standards: UL/CSA recognized
• Applications: Electronics protection, control circuits, power distribution
• AIC rating: 8kA@130Vac
• Connection: Ferrule
• Barrels: 1
• Velocity: VFA - Very Fast Acting
• Weight: 0.01 lb

Product Identification

• UPC: 078200194020
• GTIN: 00782001940201
