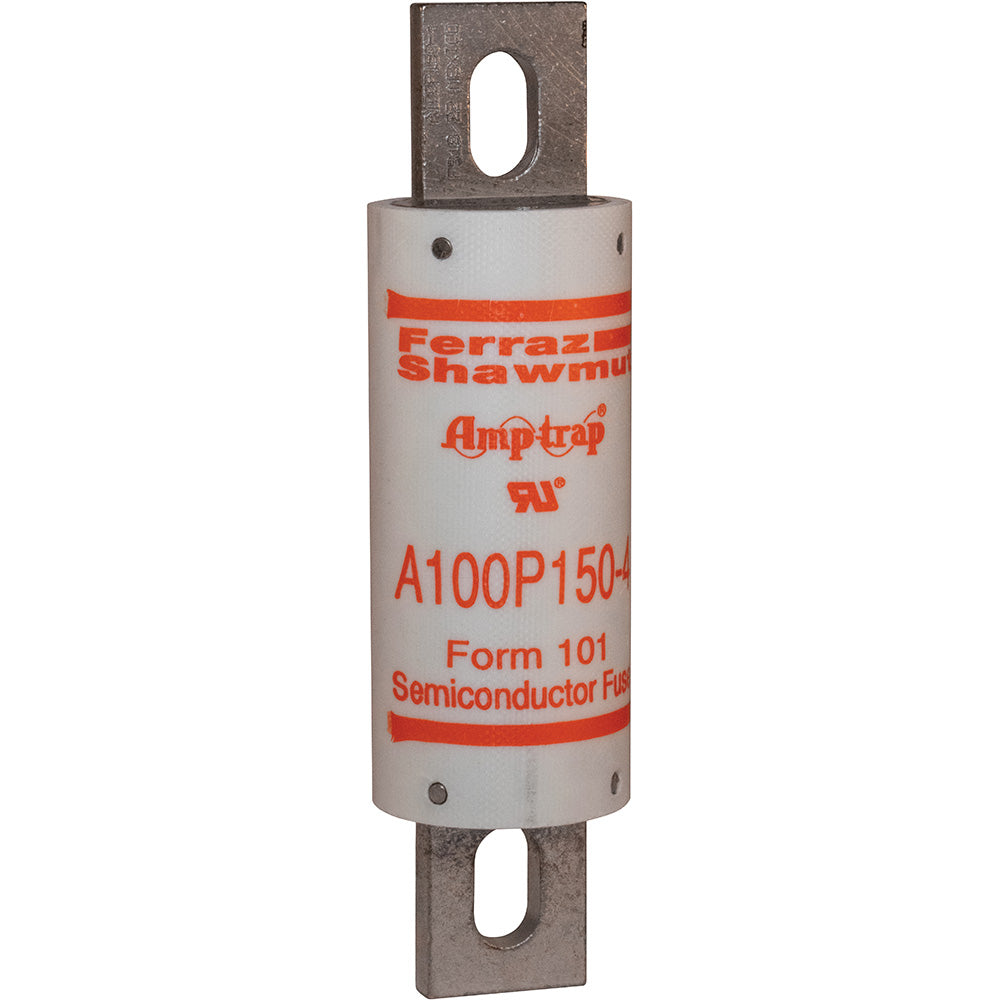

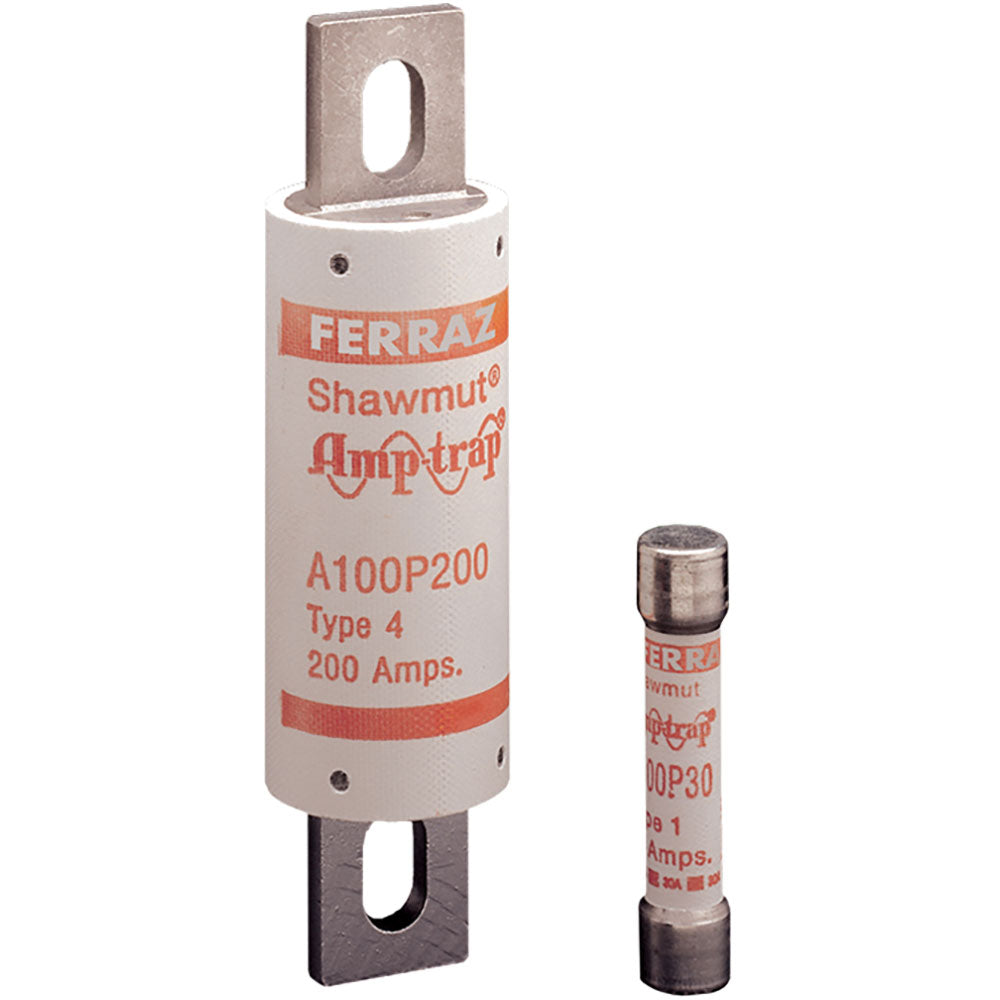

Cutler Hammer A100P150-4 - Amp-Trap Fuse 150A (100kA AIC @ 1000V)

Cutler Hammer A100P150-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection in industrial electrical systems. It features a 150A current rating and a 1000V AC voltage rating, capable of interrupting up to 100kA of fault current. The fuse is constructed as a single-barrel unit with a 2-inch diameter and a robust build weighing 5.19 lb. It is UL certified and engineered to meet stringent industry standards for safety and performance. This fuse is typically applied in motor branch circuits, feeders, and mains where high interrupting capacity and current limitation are critical.

Key Features & Specifications

• Type: Amp-Trap A100P, Low Voltage Current-Limiting Fuse
• Voltage Rating: 1000V AC
• Current Rating: 150A
• AIC Rating: 100kA @ 1000V AC
• Dimensions: 2-inch Diameter
• Weight: 5.19 lb
• Barrels: 1
• Certification: UL
• Applications: Motor Branch Circuits, Feeders, Mains
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 78200194856
• GTIN: 00782001948566
