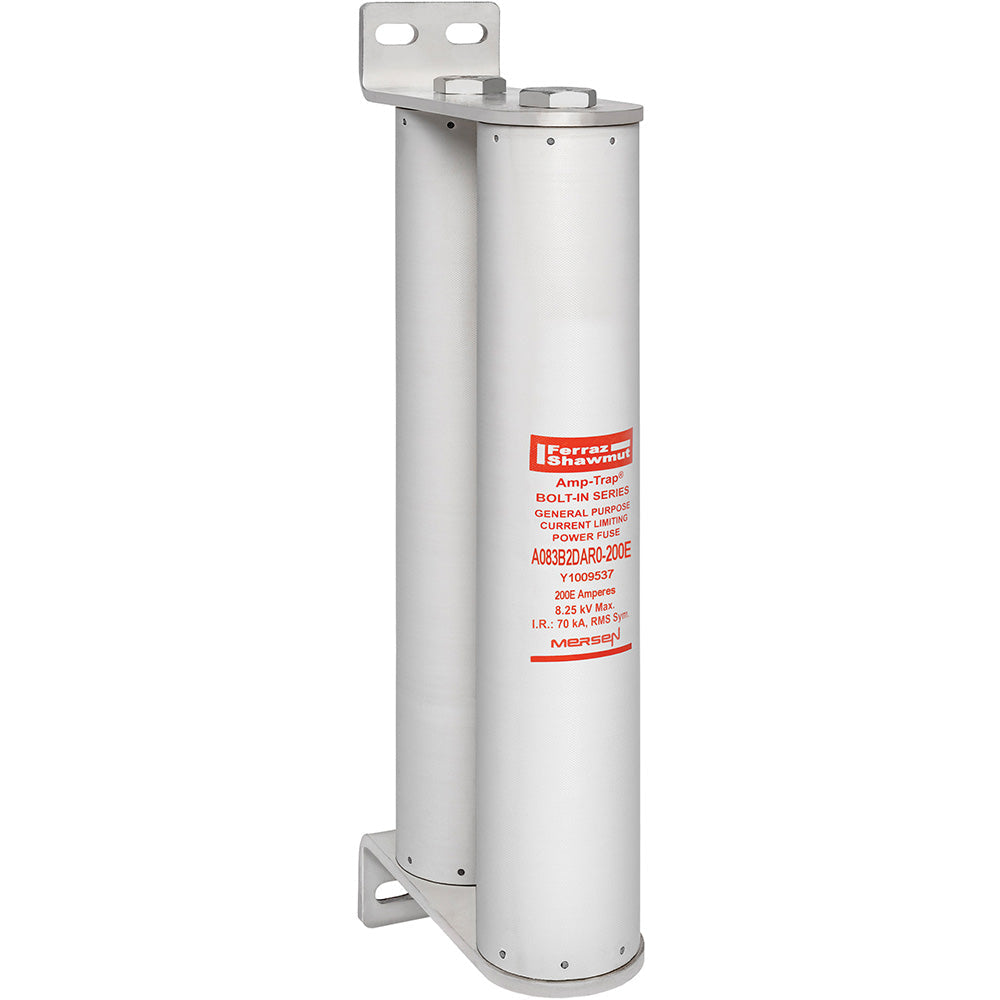

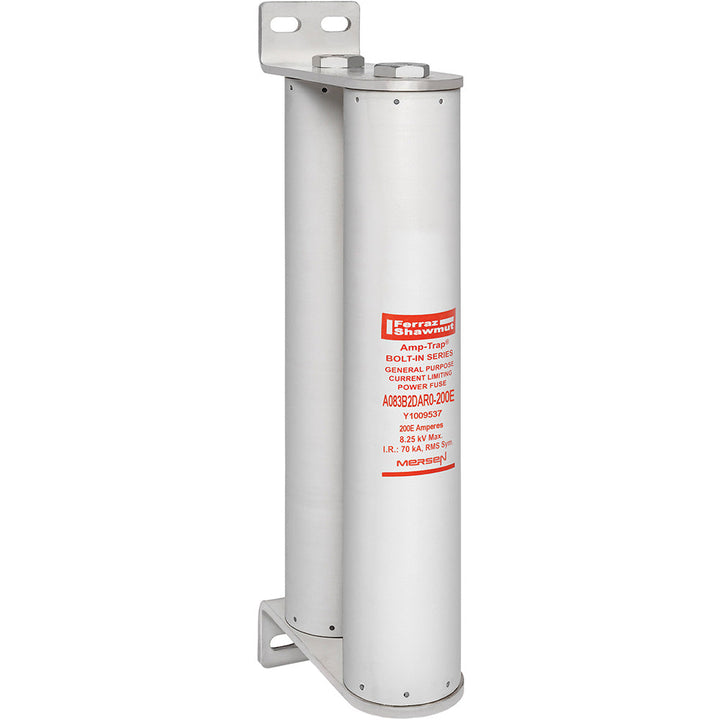

Mersen A083B2DAR0-200E - Medium Voltage Fuse 200A (50kA AIC @ 8.25kV)

Mersen A083B2DAR0-200E is a medium-voltage current-limiting fuse designed for high-interrupting-capacity circuit protection in industrial power systems. This Class E-rated fuse operates at 8250V with a 200A current rating, featuring a robust two-barrel construction with a 3-inch diameter and 50kA interrupting capacity at rated voltage. Its bolt-in Amp-Trap design provides reliable short-circuit protection in compact installations, meeting stringent industry standards for medium-voltage applications. Typical uses include motor starters, transformers, and feeder circuits in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Amp-Trap Bolt-In Series current-limiting fuse (Class E)
• Voltage Rating: 8250V AC
• Current Rating: 200A
• Dimensions: 3" diameter
• Standards: IEEE/ANSI for medium-voltage fuses
• Applications: Industrial power distribution, motor protection, transformers
• AIC rating: [email protected]
• Barrels: 2
• Weight: 24 lb

Product Identification

• UPC: 782001302764
• GTIN: 00782001302764
