Mersen A072F2D0R0-24R - Medium Voltage Fuse 450A (Class R 7200V 50kA)

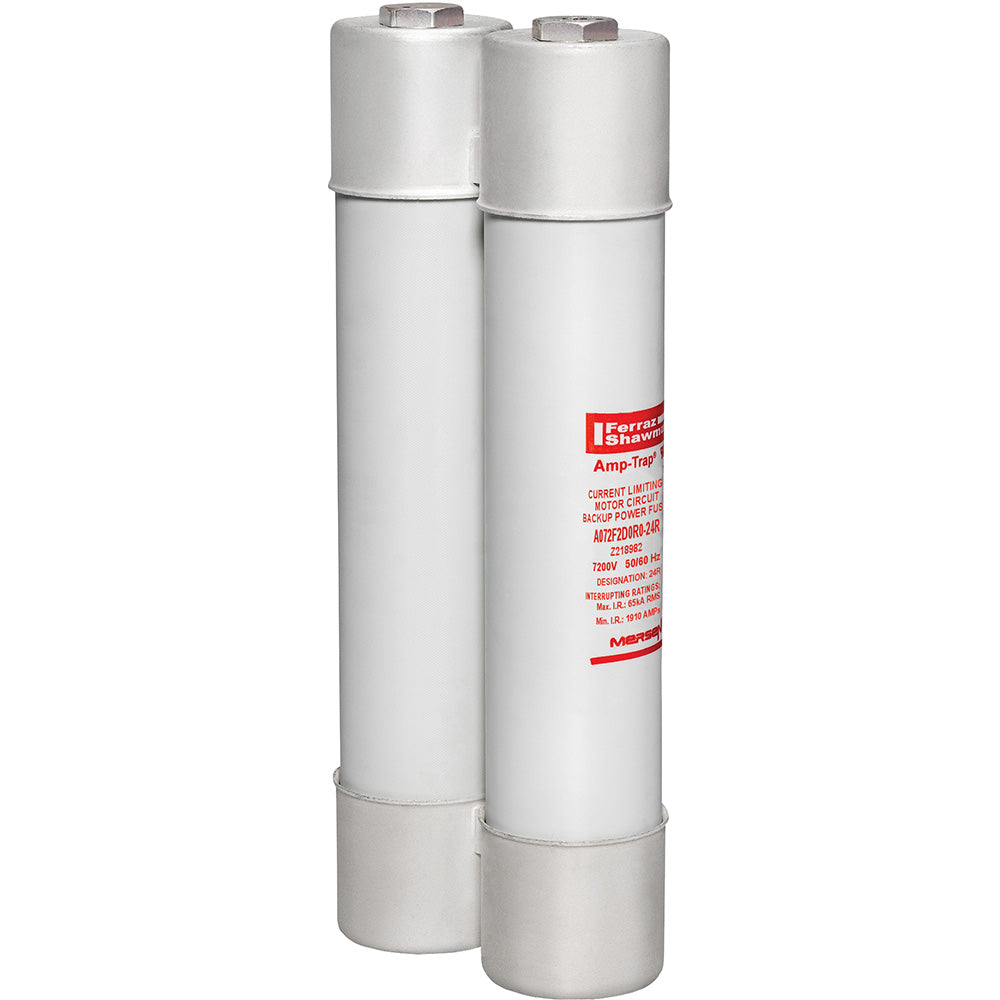

Mersen A072F2D0R0-24R is a medium voltage current-limiting fuse designed for protecting electrical distribution systems and equipment from short-circuit faults. It features a 7200V voltage rating and 450A current rating, providing reliable overcurrent protection in demanding industrial environments. The fuse employs a dual-barrel construction with a 3-inch diameter and 12.5-inch clip center spacing, built with current-limiting technology to interrupt high fault currents effectively. This Class R fuse meets industry standards with a 50kA interrupting rating at 7.2kV, ensuring compliance with electrical protection requirements. Typical applications include motor control centers, transformers, and medium voltage switchgear where high-performance fault protection is essential.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, dual-barrel construction
• Voltage Rating: 7200V AC
• Current Rating: 450A
• Dimensions: 3-inch diameter, 12.5-inch clip center
• Standards: Class R rated
• Applications: Electrical distribution systems, motor control centers, transformers, switchgear
• AIC rating: [email protected]
• Barrels: 2
• Class Rating: R
• Diameter: 3 inches
• Clip Center: 12.5 inches
• Weight: 5.19 lb
• Family: Amp-Trap Series

Product Identification

• UPC: 782001805142
• GTIN: 00782001805142
