Mersen A055F2D0R0-300E - Medium Voltage Fuse 5500V 300A (63kA Interrupting Capacity)

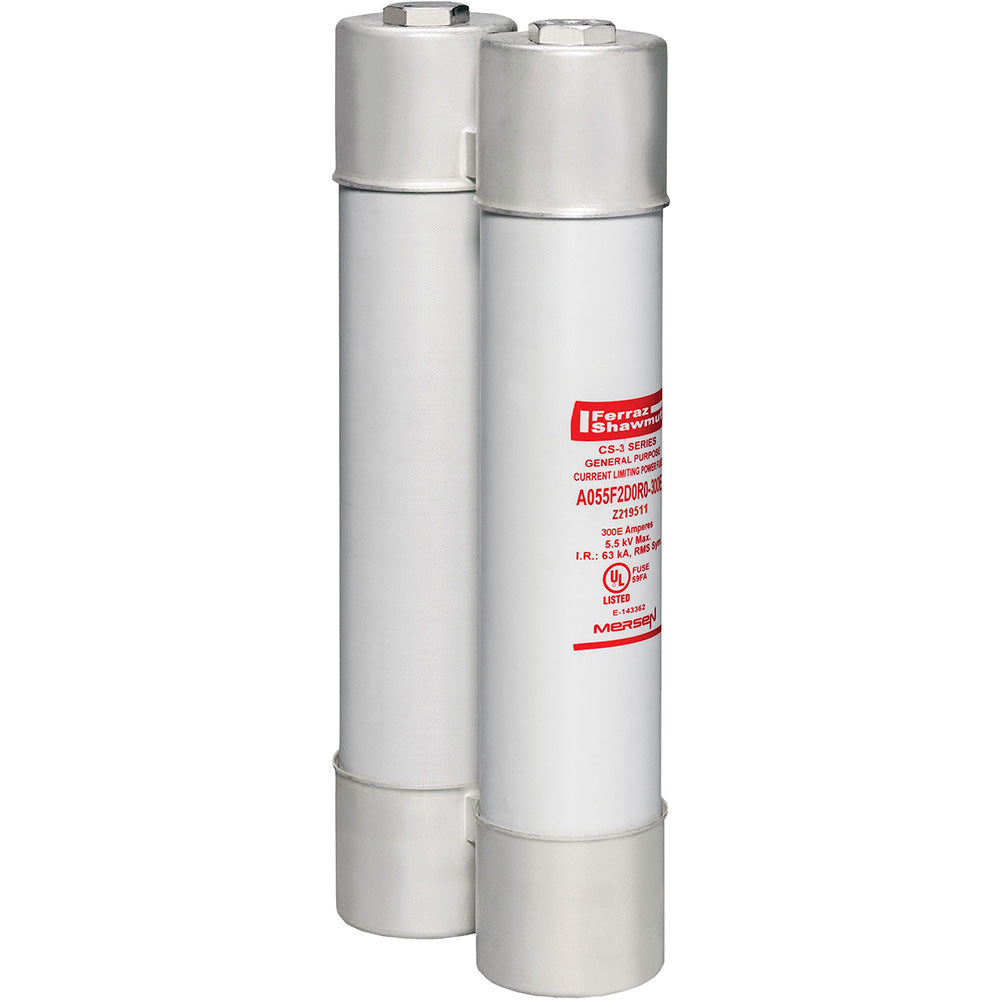

Mersen A055F2D0R0-300E is a medium voltage fuse designed for high-current circuit protection in industrial power distribution systems. This Class E fuse features a 5500V voltage rating and 300A current rating, with a robust 2-barrel construction measuring 15.88 inches in length and 3 inches in diameter. The fuse meets stringent industry standards with a 63kA interrupting capacity at 5.5kV, providing reliable protection for transformers, motors, and capacitor banks in medium-voltage applications.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse (Class E)
• Voltage Rating: 5500V AC
• Current Rating: 300A
• Dimensions: 15.88 in length x 3 in diameter
• Weight: 7 lb
• Standards: Meets industry requirements for medium voltage protection
• Applications: Industrial power distribution, transformers, motors, capacitor banks
• AIC rating: [email protected]
• Barrels: 2
• Clip Center: 12 in
• Class Rating: E
• Country of Origin: Mexico
• Family: CS-3 Series

Product Identification

• UPC: 782001804299
• GTIN: 00782001804299
