Mersen A055F1DSR0-125E - Medium Voltage Fuse 5500V/125A (63kA AIC)
Mersen A055F1DSR0-125E - Medium Voltage Fuse 5500V/125A (63kA AIC)
Mersen A055F1DSR0-125E - Medium Voltage Fuse 5500V/125A (63kA AIC)
Mersen A055F1DSR0-125E - Medium Voltage Fuse 5500V/125A (63kA AIC)

Mersen A055F1DSR0-125E - Medium Voltage Fuse 5500V/125A (63kA AIC)

Mersen
Price
Save $5,424
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

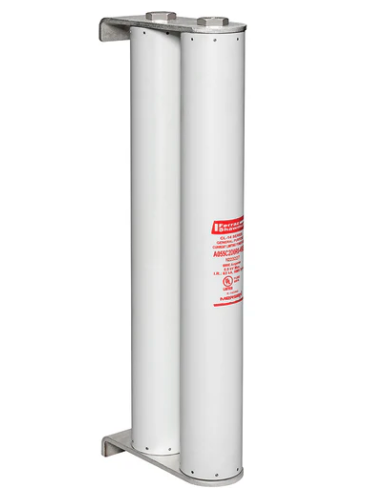

Mersen A055F1DSR0-125E is a medium voltage fuse designed for high-current circuit protection in industrial power systems. This CS-3 Series fuse features a 5500V AC rating with a 125A current capacity and 63kA interrupting capacity at 5.5kV, housed in a durable ferrule-connected design with a 3-inch diameter and 12-inch clip center spacing. Constructed to Class E standards, the single-barrel fuse provides reliable protection for medium voltage applications including motor starters, transformers, and feeder circuits.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse (A055F)
  • Voltage Rating: 5500V AC
  • Current Rating: 125A
  • Dimensions: 3" diameter, 12" clip center
  • Standards: Class E
  • Applications: Industrial power distribution, transformers, motor protection
  • AIC rating: [email protected]
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 7 lb
Product Identification
  • UPC: 78200180259
  • GTIN: 00782001802592
