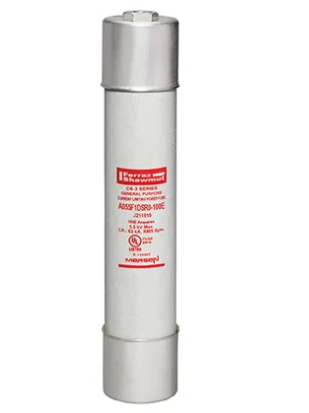

Mersen A055F1DSR0-100E - Medium Voltage Fuse 5500V 100A (63kA AIC)

Mersen
Price
Save $3,674.65
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen A055F1DSR0-100E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 5500V AC voltage rating and 100A current rating with a 63kA interrupting capacity at 5.5kV, housed in a compact ferrule-connected design with a 3-inch diameter and 12-inch clip center spacing. Constructed as a Class E single-barrel fuse, it meets stringent industry standards for medium-voltage applications. Typical uses include transformer protection, motor starter circuits, and switchgear applications requiring reliable overcurrent protection.

Key Features & Specifications
  • Type: CS-3 Series current-limiting fuse, ferrule connection
  • Voltage Rating: 5500V AC
  • Current Rating: 100A
  • Dimensions: 3" diameter, 12" clip center
  • Standards: Class E rated
  • Applications: Industrial power systems, transformer protection
  • AIC rating: [email protected]
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 7 lb
Product Identification
  • UPC: 78200180258
  • GTIN: 00782001802585
