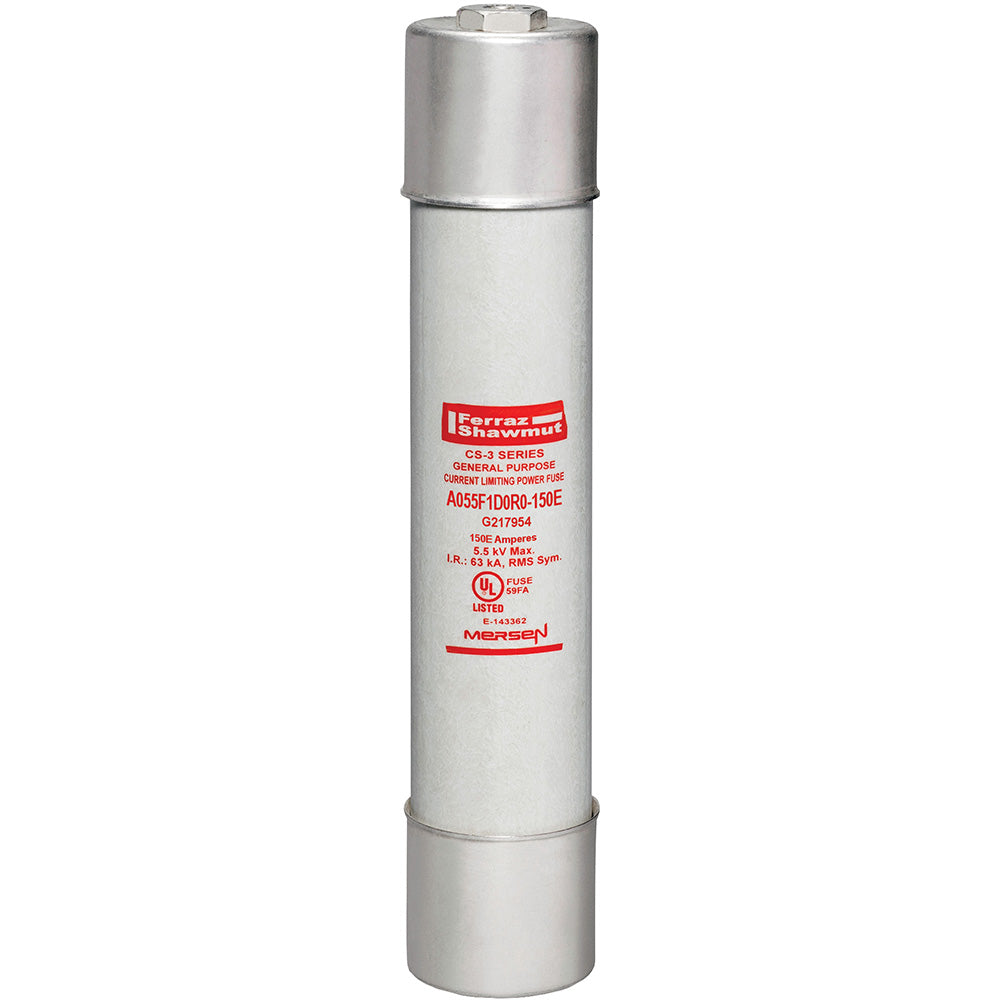

Mersen A055F1D0R0-150E - Medium Voltage Fuse 150A ([email protected] Interrupting Capacity)

Mersen A055F1D0R0-150E is a medium voltage fuse designed for high-current circuit protection in industrial power systems. This UL-certified Class E fuse features a 5500V voltage rating and 150A current capacity, with a robust 3-inch diameter construction and 15.88-inch length for durable performance. Engineered to meet stringent safety standards, it delivers 63kA interrupting capacity at 5.5kV for reliable fault protection. The single-barrel design with 12-inch clip centers is optimized for medium voltage switchgear, motor controllers, and transformer protection applications.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse (CS-3 Series)
• Voltage Rating: 5500V AC
• Current Rating: 150A
• Dimensions: 15.88 in length x 3 in diameter
• Standards: UL certified
• Applications: Industrial switchgear, motor protection, transformers
• Class Rating: E
• Barrels: 1
• AIC rating: [email protected]
• Clip Center: 12 in
• Weight: 7 lb

Product Identification

• UPC: 782001804251
• GTIN: 00782001804251
