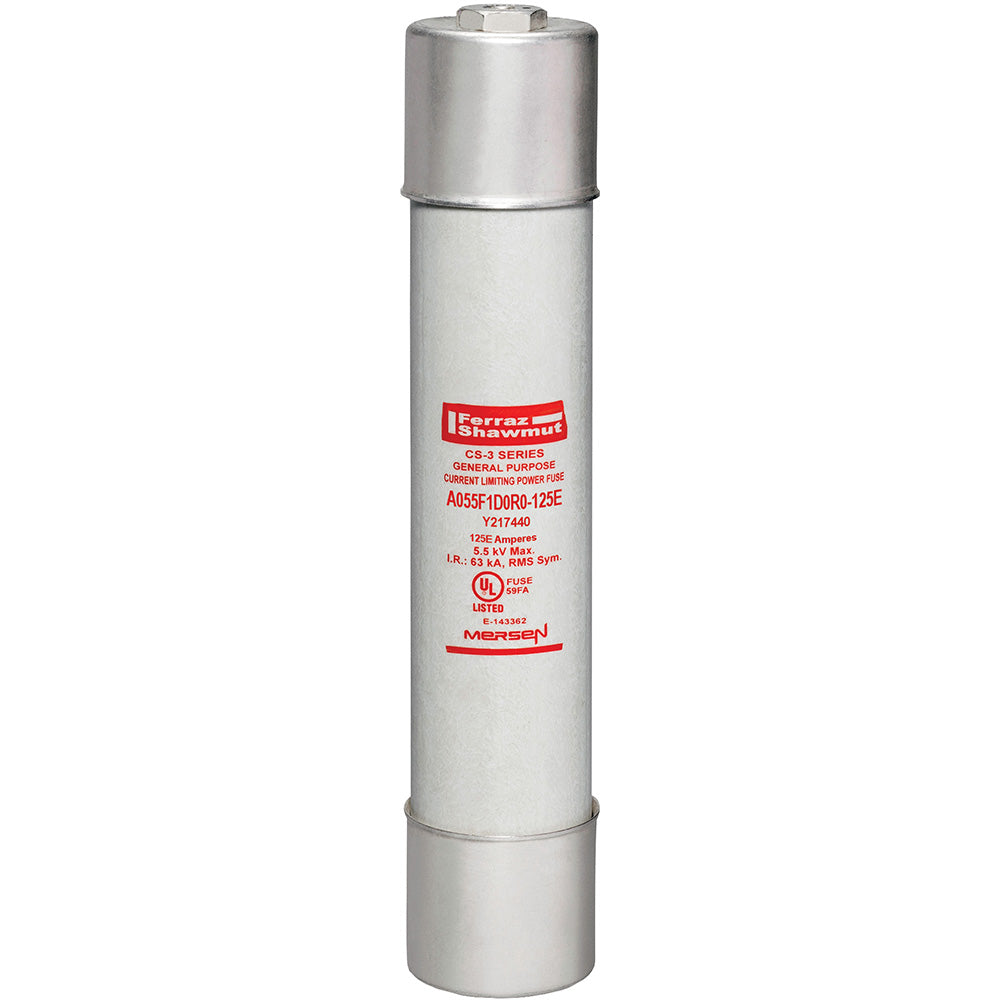

Mersen A055F1D0R0-125E - Medium Voltage Fuse 5500V 125A (63kA Interrupting Capacity)

Mersen A055F1D0R0-125E is a medium voltage fuse designed for high-current circuit protection in industrial power systems. This UL-certified Class E fuse features a 5500V voltage rating and 125A current rating with a [email protected] interrupting capacity for reliable fault protection. The single-barrel construction measures 3" in diameter with 12" clip center spacing and weighs 7 lb, engineered for robust performance in demanding environments. Compliant with UL standards, it's part of the CS-3 Series family for medium voltage applications including motor protection, transformer circuits, and power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E
• Voltage Rating: 5500V AC
• Current Rating: 125A
• Dimensions: 3" diameter, 12" clip center
• Standards: UL certified
• Applications: Industrial power systems, motor protection, transformer circuits
• AIC rating: [email protected]
• Barrels: 1
• Weight: 7 lb
• Family: CS-3 Series

Product Identification

• UPC: 782001804244
• GTIN: 00782001804244
