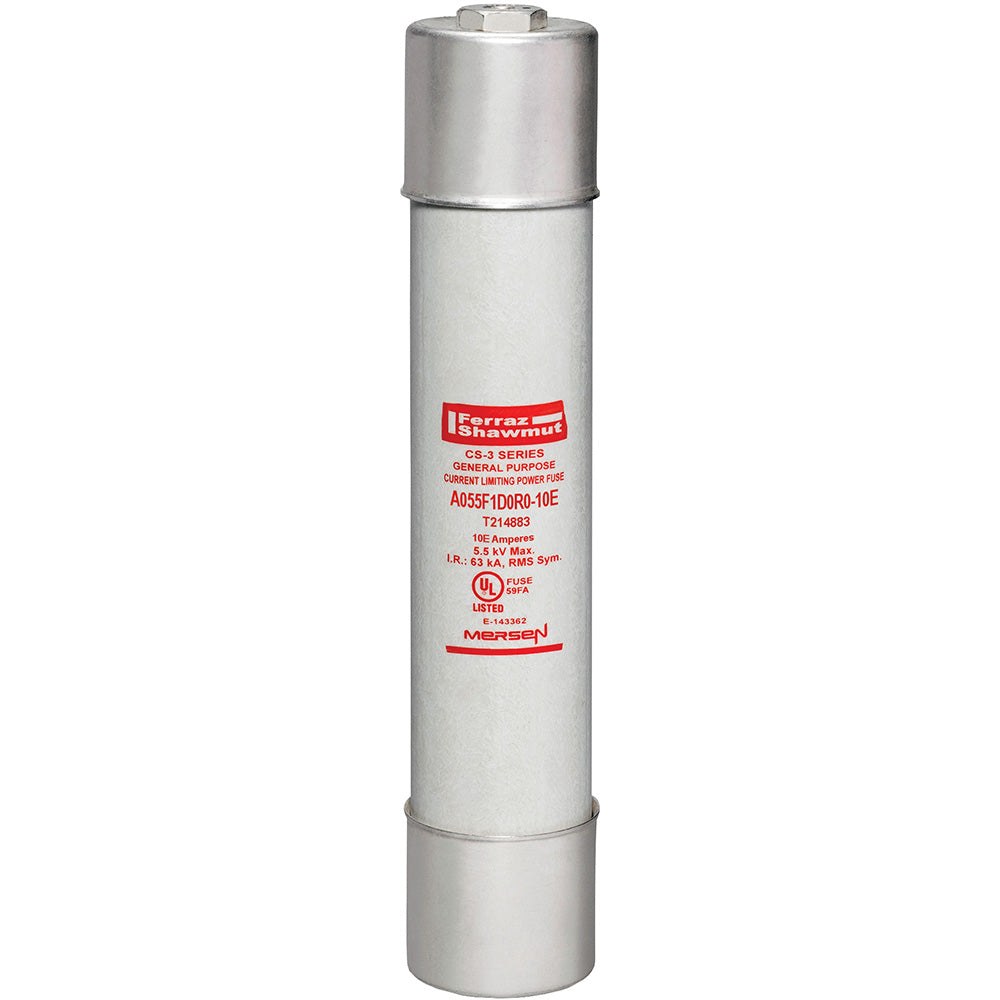

Mersen A055F1D0R0-10E - Medium Voltage Fuse 5500V (63kA AIC)

Mersen A055F1D0R0-10E is a medium voltage fuse designed for high-current protection in industrial power systems. This CS-3 Series fuse features a 5500V voltage rating and 10A current rating, with a single-barrel construction and 63kA interrupting capacity at 5.5kV. The Class E-rated fuse measures 3" in diameter with 12" clip centers, constructed for reliable operation in demanding environments while meeting industry standards for medium voltage applications. Typical uses include transformer protection, motor circuits, and feeder protection in industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse (Class E)
• Voltage: 5500V AC
• Current: 10A
• Dimensions: 3" diameter, 12" clip centers
• Standards: Meets industry requirements for medium voltage protection
• Applications: Industrial power systems, transformer protection, motor circuits
• AIC rating: [email protected]
• Barrels: 1
• Weight: 7 lb
• Family: CS-3 Series

Product Identification

• UPC: 782001804145
• GTIN: 00782001804145
