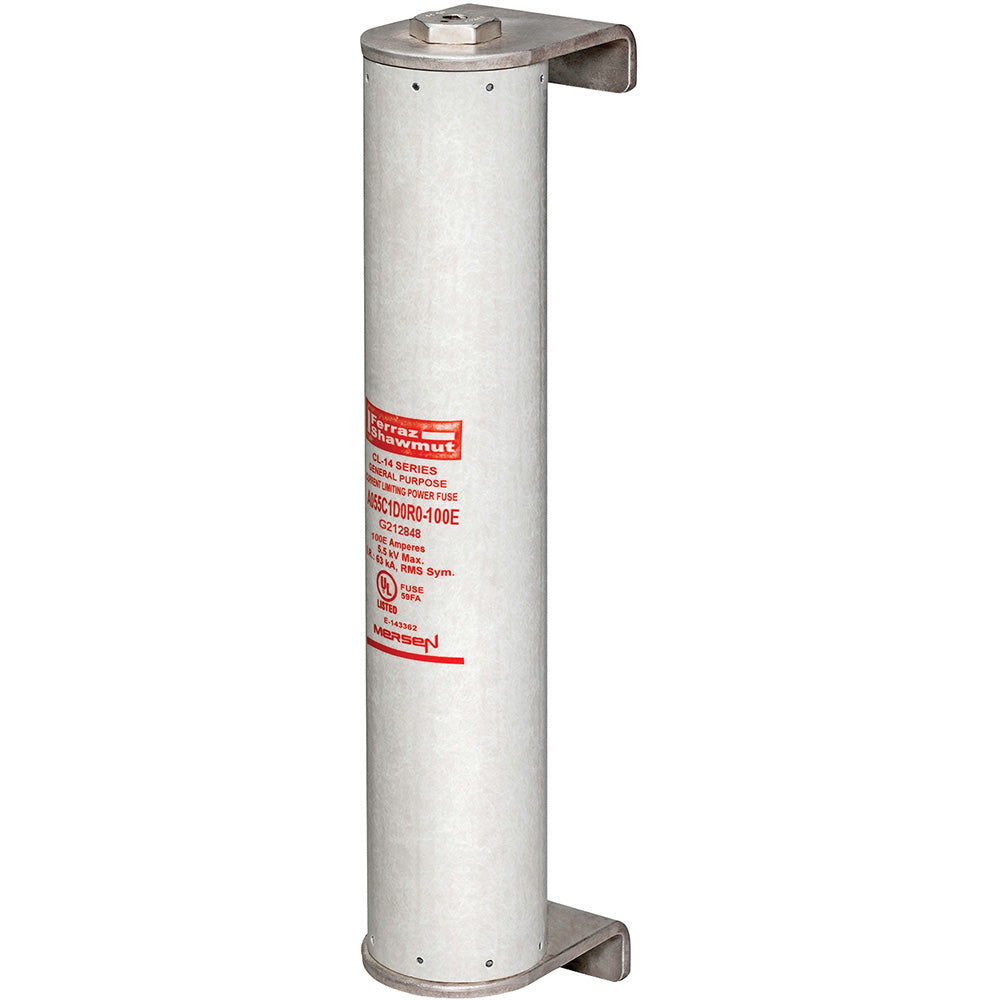

Mersen A055C1D0R0-100E - Medium Voltage Fuse 5500V 100A (63kA AIC)

Mersen A055C1D0R0-100E is a medium voltage fuse designed for high-current circuit protection in industrial power systems. This Class E-rated fuse operates at 5500V with a 100A current rating and delivers 63kA interrupting capacity at 5.5kV for reliable fault protection. The single-barrel construction features a 4.31-inch diameter body with 15.25-inch clip centers, weighing 15 lb for robust mechanical stability. Compliant with industry standards for medium voltage applications, this CL-14 series fuse is engineered for transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating
• Voltage Rating: 5500V AC
• Current Rating: 100A
• Dimensions: 4.31" diameter, 15.25" clip centers
• Standards: Meets industry requirements for medium voltage protection
• Applications: Transformer, motor, and feeder circuit protection
• AIC rating: [email protected]
• Barrels: 1
• Weight: 15 lb

Product Identification

• UPC: 078200180390
• GTIN: 00782001803902
