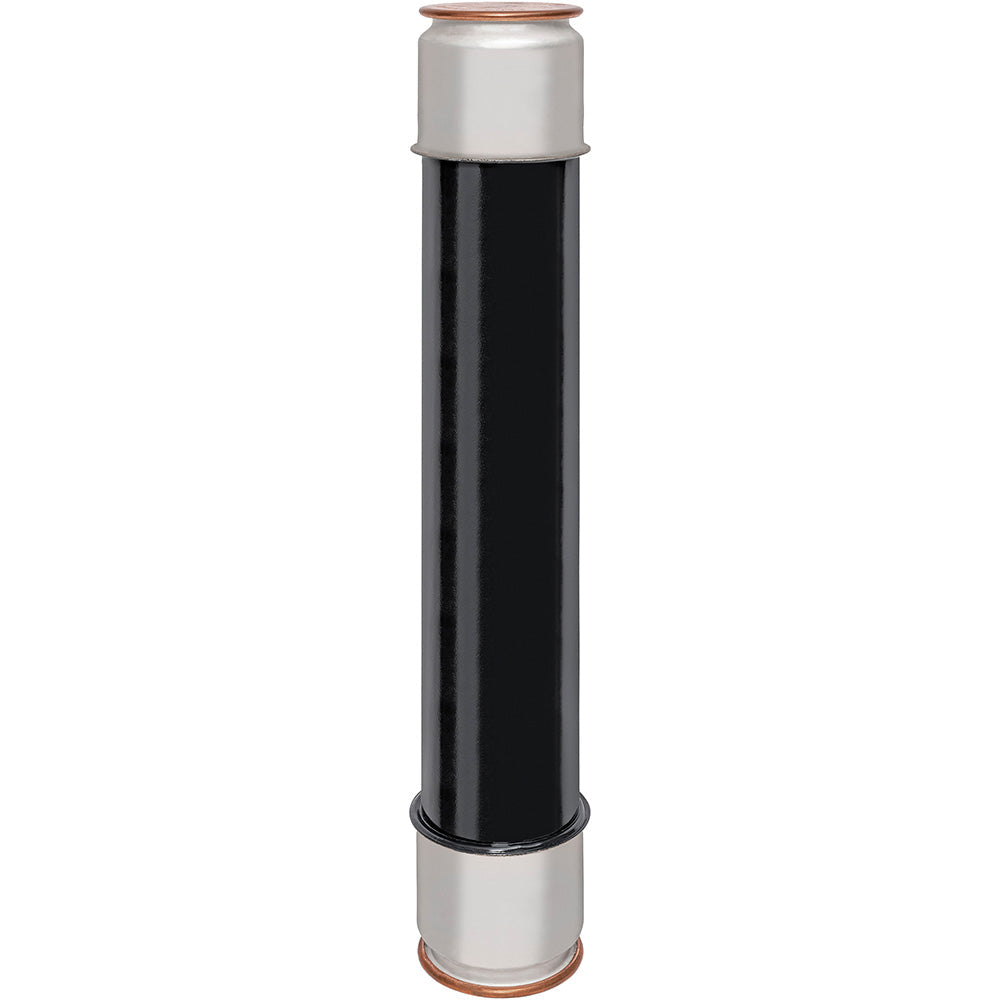

Mersen 9F62DDD100 - Medium Voltage Fuse 15.5kV/100A (50kA AIC)

Mersen 9F62DDD100 is a medium voltage fuse designed for high-voltage circuit protection in industrial applications. This Class E-rated fuse operates at 15.5kV with a 100A current rating and 50kA interrupting capacity, providing reliable overcurrent protection. The 18.88-inch long, 3-inch diameter unit features a robust clip-in connection with 15-inch center spacing and single-barrel construction. Compliant with industry standards for medium voltage protection, it is engineered for use in power distribution systems, transformers, and motor circuits.

Key Features & Specifications

• Type: Medium voltage fuse (Class E), clip-in connection, single-barrel design
• Voltage Rating: 15,500V AC
• Current Rating: 100A
• Dimensions: 18.88 in length, 3 in diameter
• Standards: Meets industry requirements for medium voltage protection
• Applications: Power distribution, transformers, motor circuits
• AIC rating: 50kA @ 15.5kV
• Connection: Clip-in
• Barrels: 1
• Clip Center: 15 in
• Weight: 11 lb

Product Identification

• UPC: 782001395827
• GTIN: 00782001395827
