Mersen 9F62DCB080 - Medium Voltage Fuse [email protected] (50kA AIC)

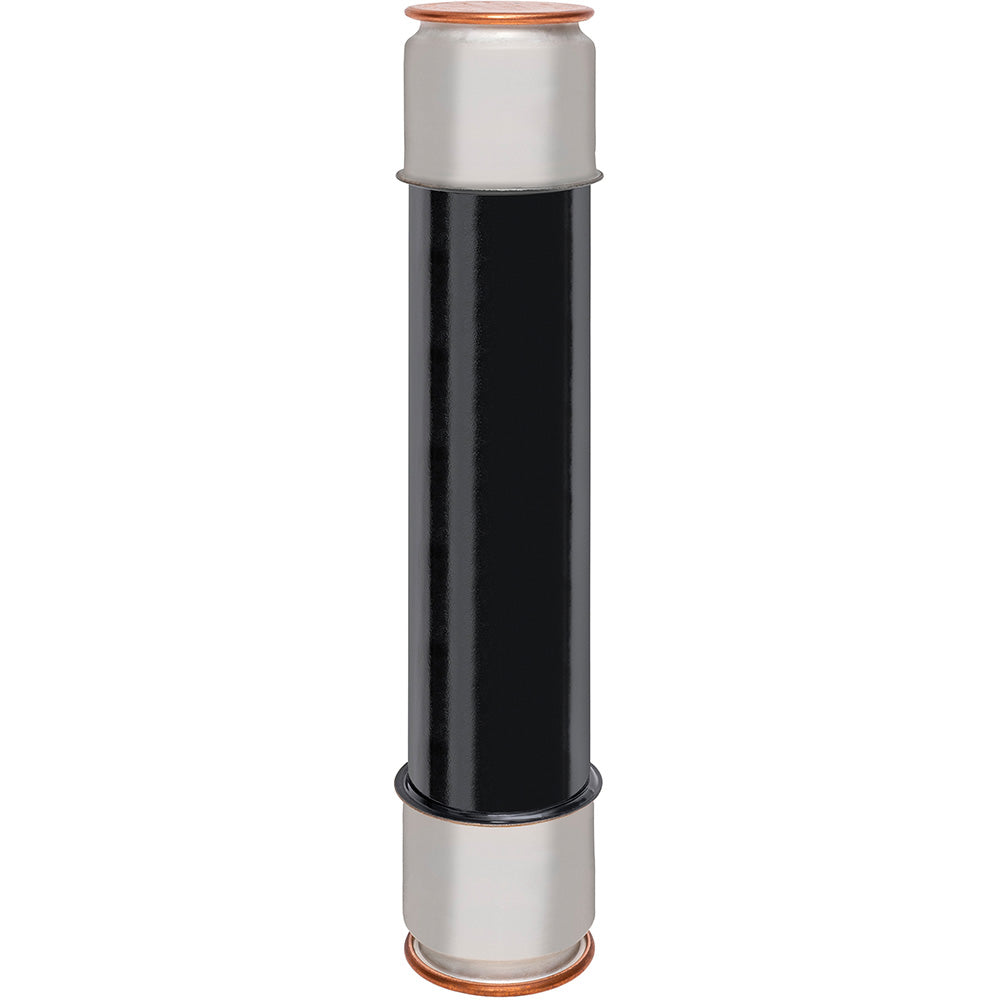

Mersen 9F62DCB080 is a medium voltage fuse designed for high-current circuit protection in industrial power systems. This Class E-rated fuse operates at 5500V with an 80A current rating and 50kA interrupting capacity at 5.5kV, providing reliable overcurrent protection. The single-barrel construction features a 3-inch diameter body with 12-inch clip center spacing, weighing 9 lb for robust mechanical stability. UL listed to standard File E143362, it meets stringent safety requirements for medium voltage applications. Typical uses include transformer protection, motor circuits, and power distribution equipment in utility and industrial settings.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E
• Voltage Rating: 5500V AC
• Current Rating: 80A
• Dimensions: 3" diameter, 12" clip center
• Standards: UL listed (File E143362)
• Applications: Transformer/motor protection, power distribution
• AIC rating: [email protected]
• Barrels: 1
• Weight: 9 lb
• Family: 9F62 Series

Product Identification

• UPC: 782001395698
• GTIN: 00782001395698
