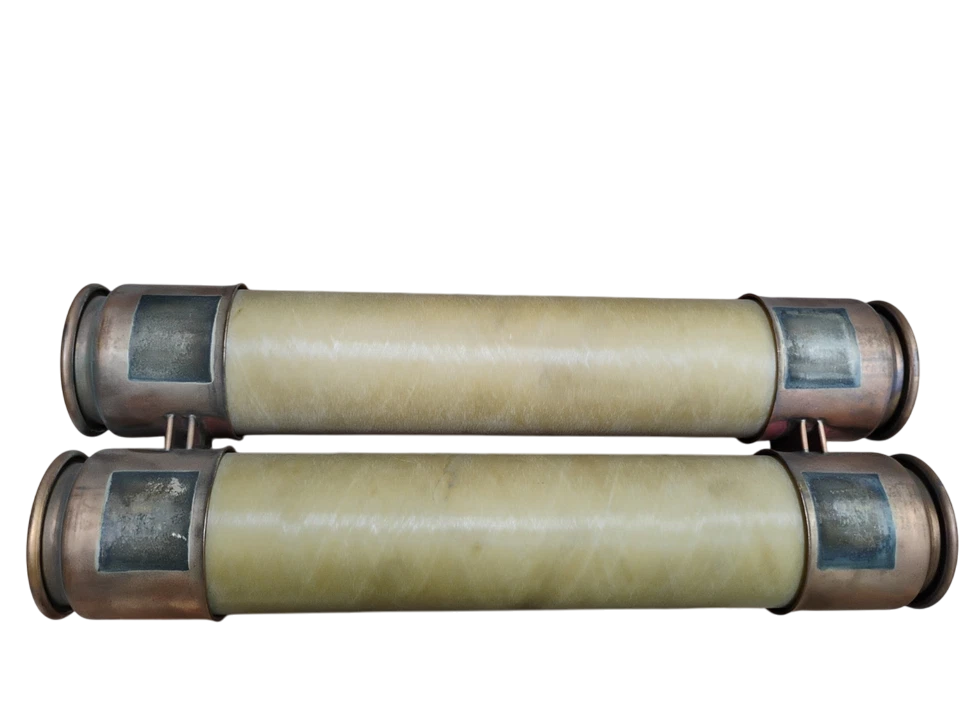

Mersen 9F60GKD250 - Medium Voltage Fuse 5500V 250A (Class E Rated)

Mersen 9F60GKD250 is a medium voltage current-limiting fuse designed for industrial circuit protection applications requiring reliable overcurrent interruption. This Class E rated fuse operates at 5500V with a 250A current rating, providing robust electrical protection in demanding environments. The fuse features a dual-barrel ferrule connection design with a 3-inch diameter and 14-inch clip center spacing, constructed for secure mounting and optimal heat dissipation. It complies with industry standards for medium voltage protection systems and is engineered for use in industrial power distribution, motor control centers, and electrical equipment requiring high-interrupting capacity protection.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with dual-barrel ferrule connection
• Voltage Rating: 5500V AC
• Current Rating: 250A
• Dimensions: 3-inch diameter, 14-inch clip center spacing
• Standards: Class E rated for medium voltage applications
• Applications: Industrial power distribution, motor control centers, electrical equipment protection
• Fuse Class: E
• Connection: Ferrule
• Barrels: 2
• Clip Center: 14 inches
• Weight: 18 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage

Product Identification

• Manufacturer: Mersen
• Model: 9F60GKD250
