Mersen 9F60GJC450 - Medium Voltage Power Fuse 450A (Class E, 4760V, 80kA AIC)

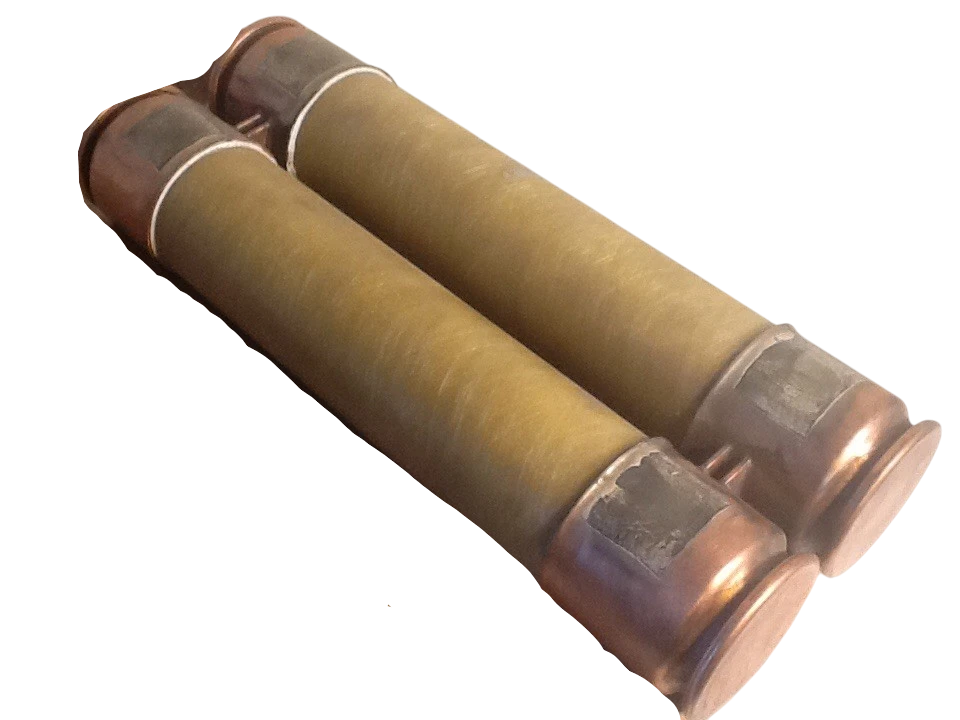

The Mersen 9F60GJC450 is a medium voltage power fuse designed for high-capacity circuit protection in industrial electrical systems. It features a 450A current rating and a 4760V voltage rating, providing robust overcurrent protection. The fuse is constructed with a dual-barrel design using ferrule connections and has a 3-inch diameter with a 12-inch clip center spacing for standardized mounting. This Class E rated fuse complies with industry standards for medium voltage applications and offers an 80kA interrupting rating at 4.76kV. It is typically deployed in industrial power distribution, motor control centers, and switchgear applications requiring reliable high-voltage protection.

Key Features & Specifications

• Type: Medium Voltage Power Fuse, Class E, Dual-Barrel Construction
• Voltage Rating: 4760V AC
• Current Rating: 450A
• Dimensions: 3-inch diameter, 12-inch clip center
• Standards: Class E Rating
• Applications: Industrial power distribution, motor control centers, switchgear
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 2
• Weight: 18 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage

Product Identification

• Manufacturer: Mersen
• Model: 9F60GJC450
