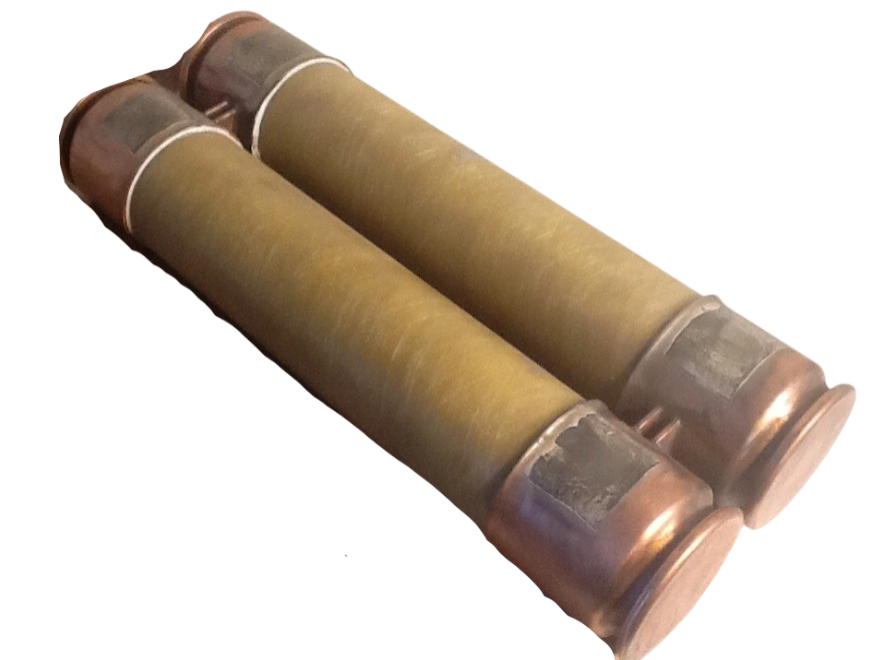

Mersen 9F60GJC250 - Medium Voltage Fuse 250A ([email protected] AIC Rating)

Mersen 9F60GJC250 is a medium voltage current-limiting fuse designed for robust circuit protection in industrial power distribution systems. It features a 250A current rating and 4760V voltage rating with an 80kA interrupting capacity at 4.76kV for reliable fault protection. The fuse employs a dual-barrel ferrule connection design with 12-inch clip center spacing and measures 3 inches in diameter with an 18 lb weight, constructed for durable performance in demanding environments. This Class E rated fuse complies with industry standards for medium voltage applications, making it suitable for motor protection, transformer circuits, and industrial power distribution systems where high fault current interruption is critical.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, dual-barrel design with ferrule connection
• Voltage Rating: 4760V AC
• Current Rating: 250A
• Dimensions: 3" diameter, 12" clip center spacing
• Standards: Class E rated for medium voltage applications
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 2
• Class Rating: E
• Weight: 18 lb
• Family: 9F60 Series
