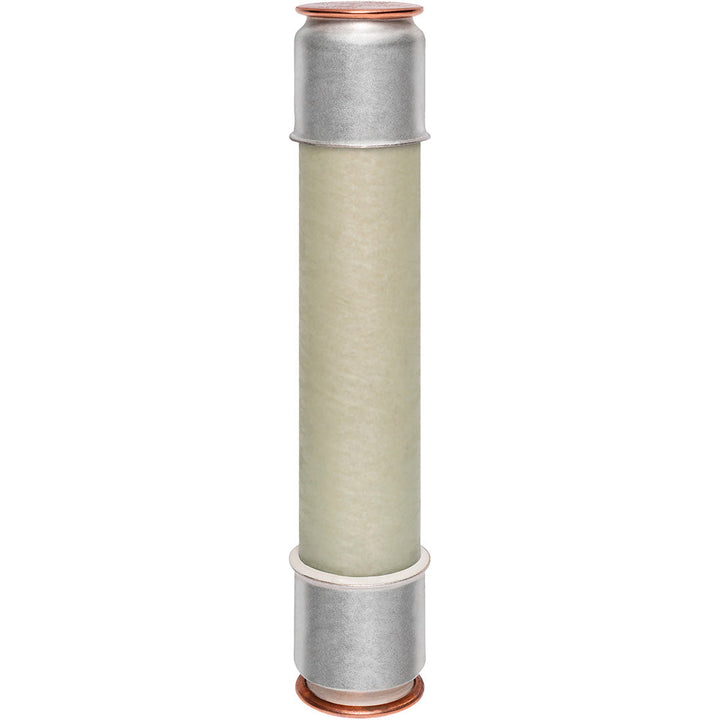

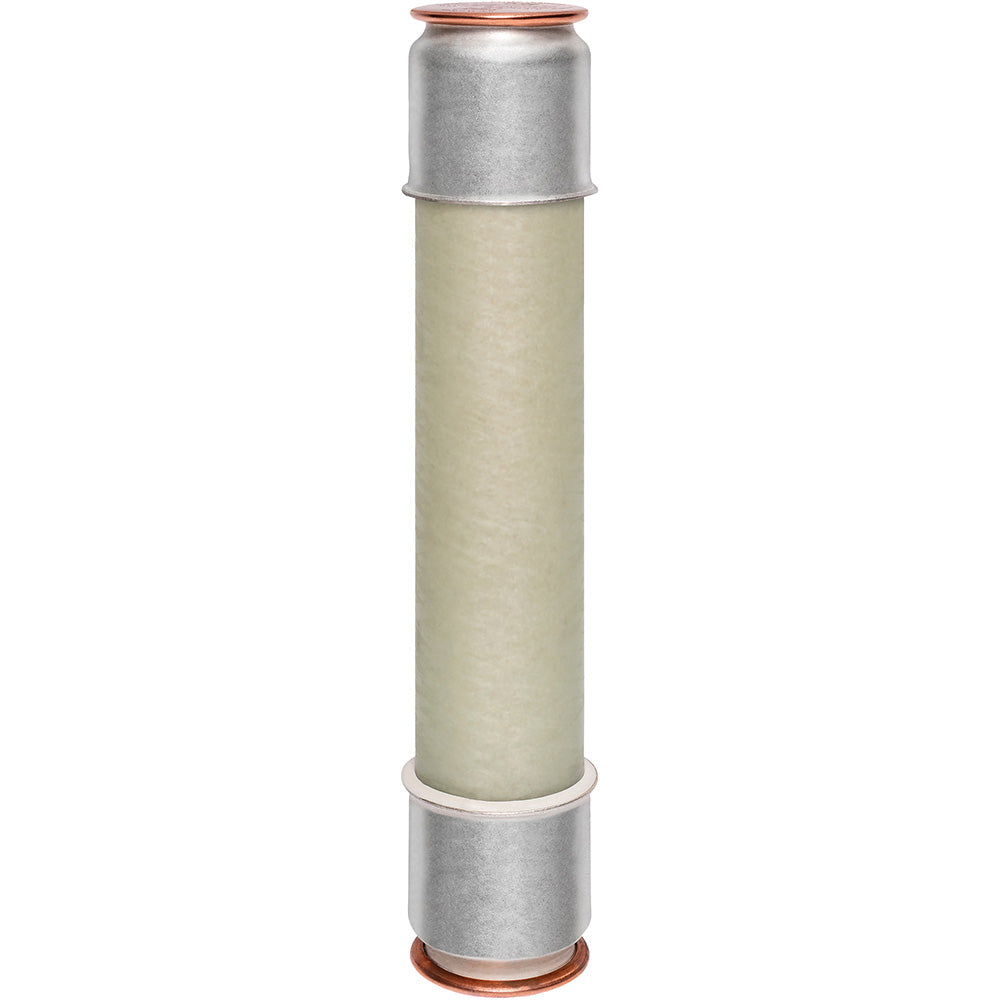

Mersen 9F60CED025 - EJ-1 Medium Voltage Fuse 25A 5500V (63kA AIC)

Mersen 9F60CED025 is a medium voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power systems. This EJ-1 class fuse operates at 5500V with a 25A current rating and delivers 63kA interrupting capacity at 5.5kV for reliable fault protection. The single-barrel construction features a 2-inch diameter body with 9-inch clip center spacing and weighs 5 lb for robust performance in demanding environments. Manufactured to meet industry standards for medium voltage applications, this Class E rated fuse provides critical circuit protection in motor control centers, transformer circuits, and industrial power distribution systems.

Key Features & Specifications

• Type: EJ-1 current-limiting fuse, single barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 25A
• Dimensions: 2-inch diameter, 9-inch clip center spacing
• Standards: Class E rated for medium voltage applications
• Applications: Industrial power distribution, motor control centers, transformer protection
• AIC rating: [email protected]
• Barrels: 1
• Clip Center: 9 inches
• Weight: 5 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage

Product Identification

• GTIN: 00782001396824
