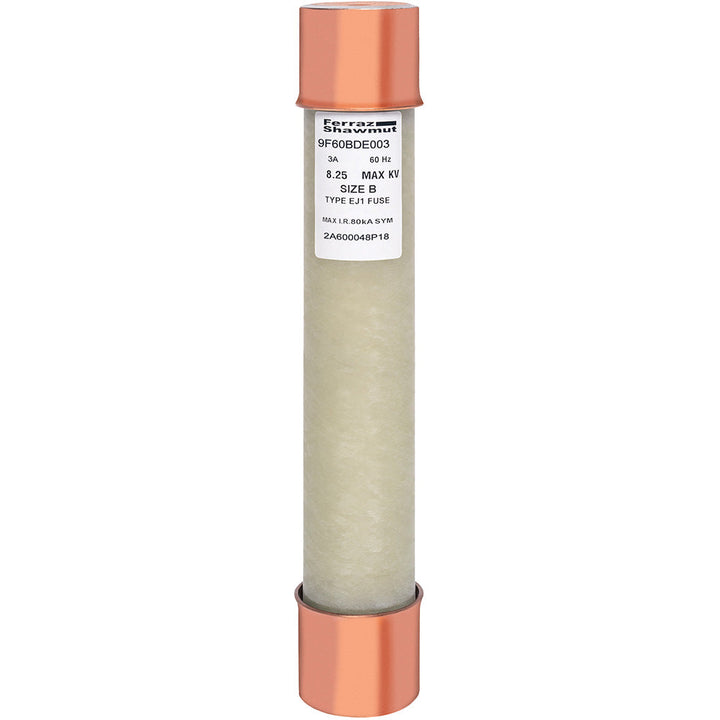

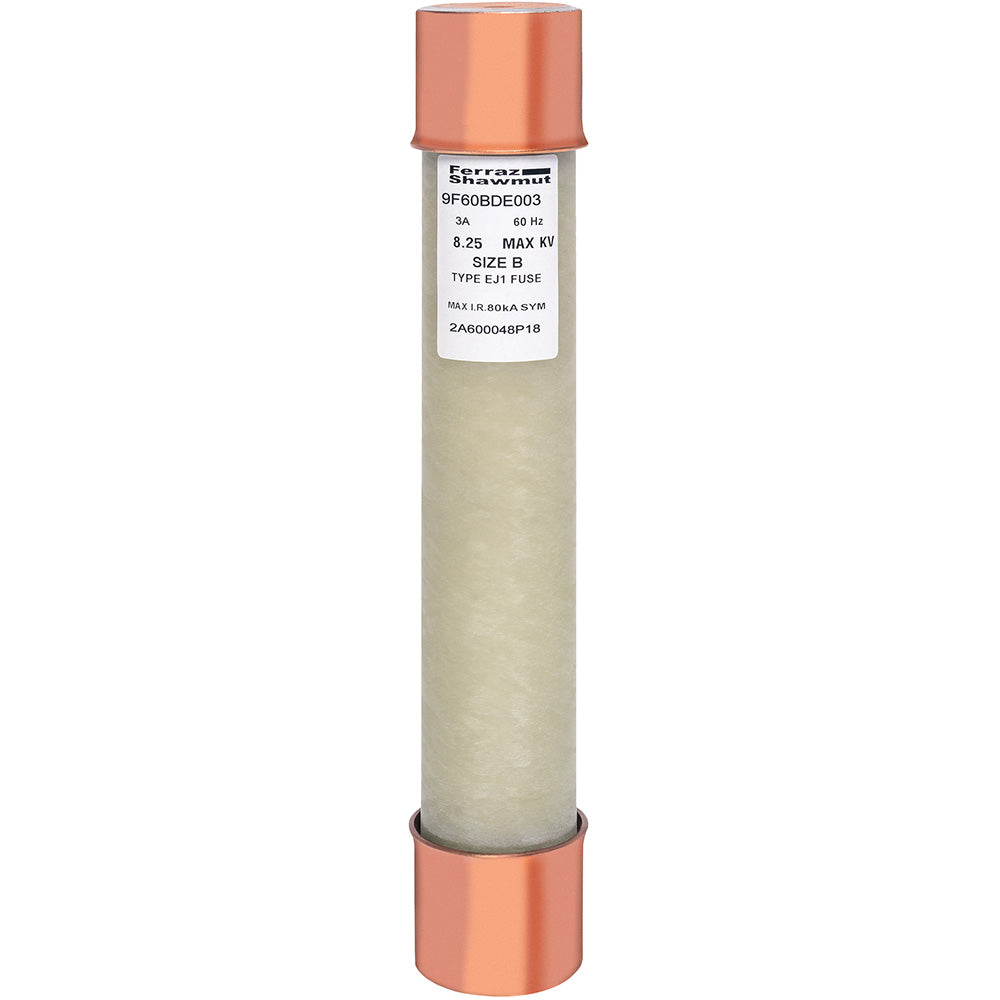

Mersen 9F60BDE003 - Medium Voltage Current-Limiting Fuse 3A 8250V (50kA AIC)

Mersen 9F60BDE003 is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. It features a 3A current rating and 8250V voltage rating, providing reliable circuit interruption capabilities. The fuse construction utilizes a single-barrel design with 1.56-inch diameter and 8.12-inch clip center spacing for standardized mounting. This Class E rated fuse complies with industry standards for medium voltage applications and offers 50kA interrupting capacity at 8.25kV. Typical applications include motor protection, transformer circuits, and industrial power distribution networks requiring robust overcurrent protection.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single-barrel design, Class E rating
• Voltage Rating: 8250V AC
• Current Rating: 3A
• Dimensions: 1.56-inch diameter, 8.12-inch clip center spacing
• Standards: Class E fuse rating
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: [email protected]
• Fuse Class: E
• Barrels: 1
• Weight: 5 lb
• Family: 9F60 Series

Product Identification

• GTIN: 00782001398026
