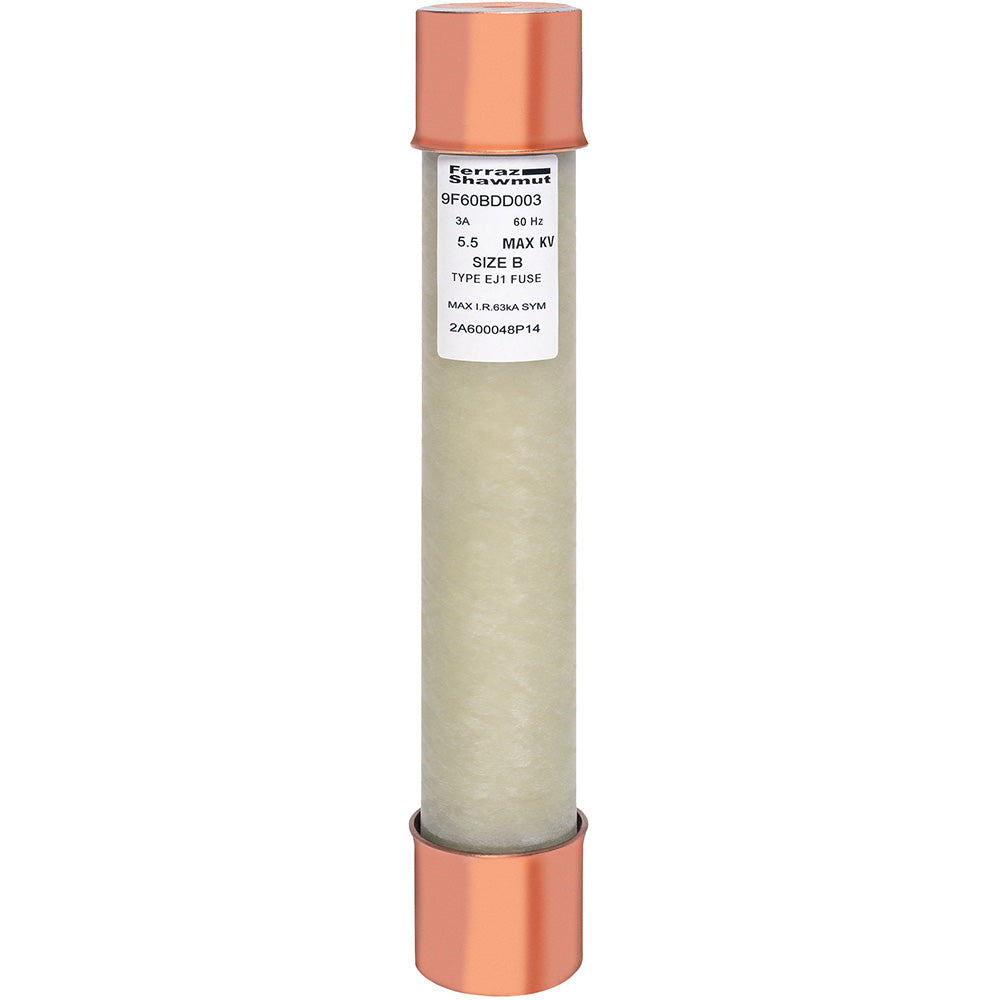

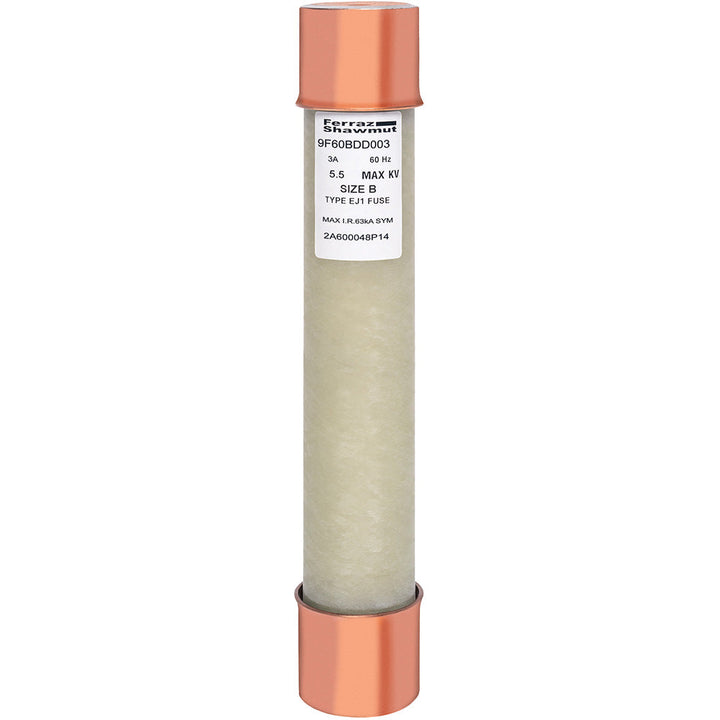

Mersen 9F60BDD003 - Medium Voltage Fuse 5500V 3A (Class E 63kA AIC)

Mersen 9F60BDD003 is a medium voltage current-limiting fuse designed for industrial circuit protection applications. This Class E rated fuse operates at 5500V AC with a 3A current rating, providing reliable overcurrent protection in demanding electrical environments. The single-barrel construction features a 1.56-inch diameter and 8.12-inch clip center spacing, engineered for secure mounting in compatible fuse holders. Compliant with industry standards for medium voltage protection, this fuse delivers 63kA interrupting capacity at 5.5kV for robust fault protection. Typical applications include motor control centers, transformer protection, and industrial power distribution systems where high-performance circuit protection is essential.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating, single barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 3A
• Dimensions: 1.56-inch diameter, 8.12-inch clip center spacing
• Standards: Class E fuse classification
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: 63kA at 5.5kV
• Barrels: 1
• Class Rating: E
• Diameter: 1.56 inches
• Clip Center: 8.12 inches
• Mounting: Standard fuse clip installation
• Family: 9F60 Series
• Type: 9F60BDD
• Weight: 5 lb

Product Identification

• GTIN: 00782001397982
