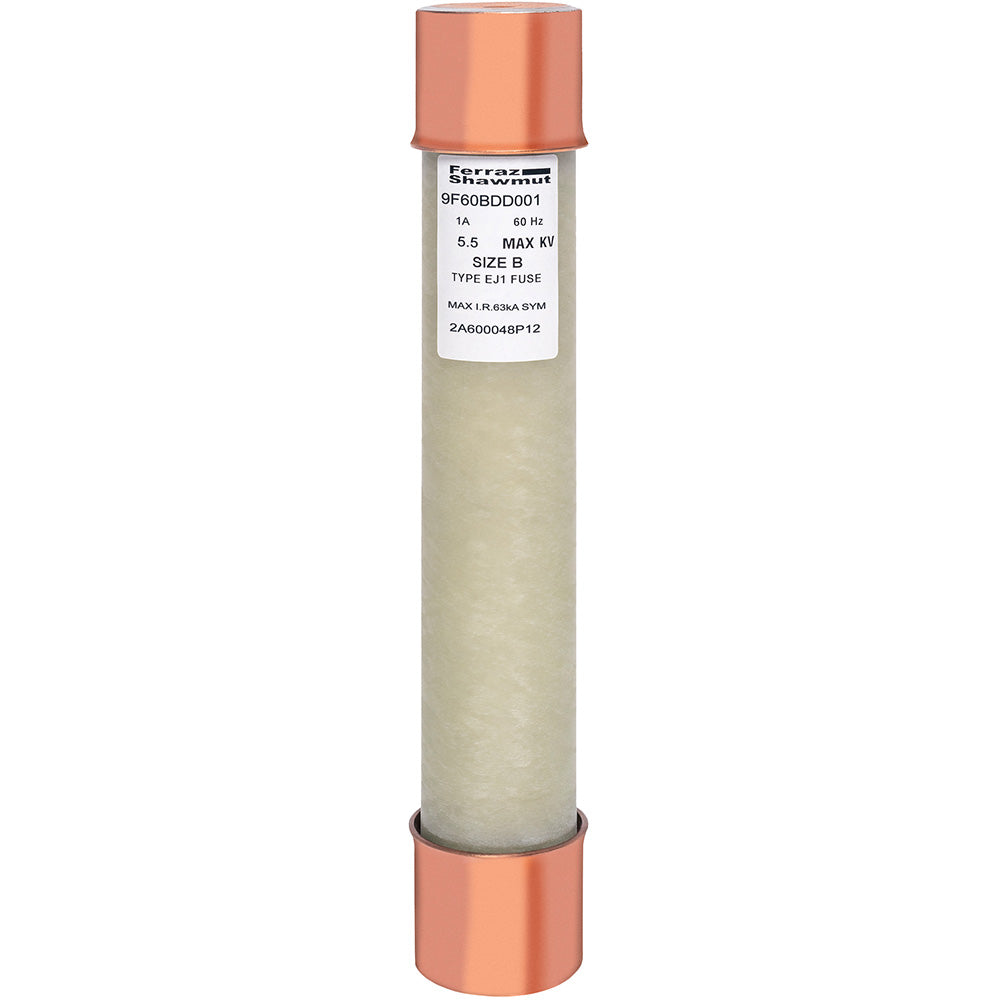

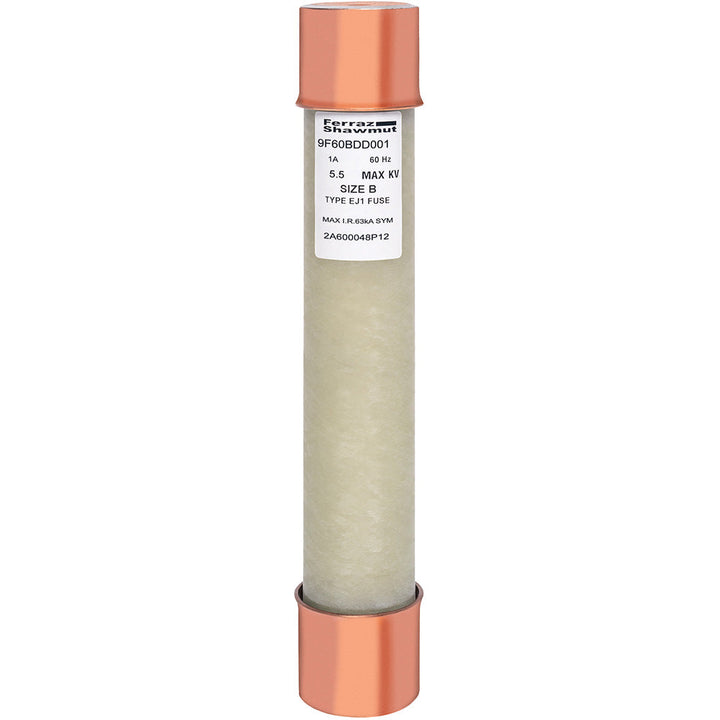

Mersen 9F60BDD001 - Medium Voltage Fuse 5500V 1A (63kA AIC)

Mersen 9F60BDD001 is a medium voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This Class E fuse provides reliable overcurrent protection with a 5500V AC voltage rating and 1A current rating, featuring a single-barrel construction with 63kA interrupting capacity at 5.5kV. The fuse measures 1.56 inches in diameter with 8.12-inch clip center spacing and weighs 5 pounds, built to withstand demanding electrical environments. It complies with industry standards for medium voltage applications, ensuring safe operation in harsh conditions. Typical applications include motor protection, transformer circuits, and industrial power distribution networks where high-voltage protection is critical.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating, single-barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 1A
• Dimensions: 1.56" diameter, 8.12" clip center spacing
• Standards: Industrial medium voltage fuse standards
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: [email protected]
• Class Rating: E
• Barrels: 1
• Weight: 5 lb

Product Identification

• GTIN: 00782001397951
