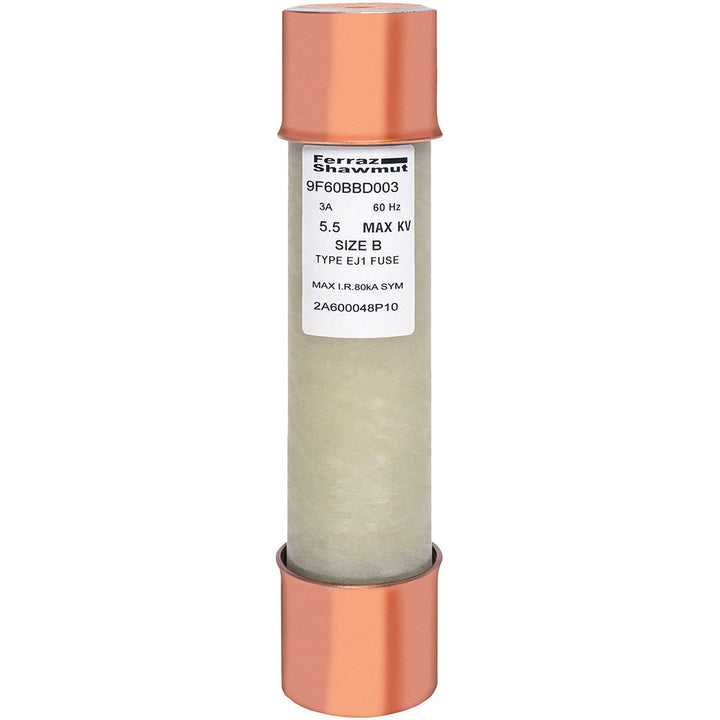

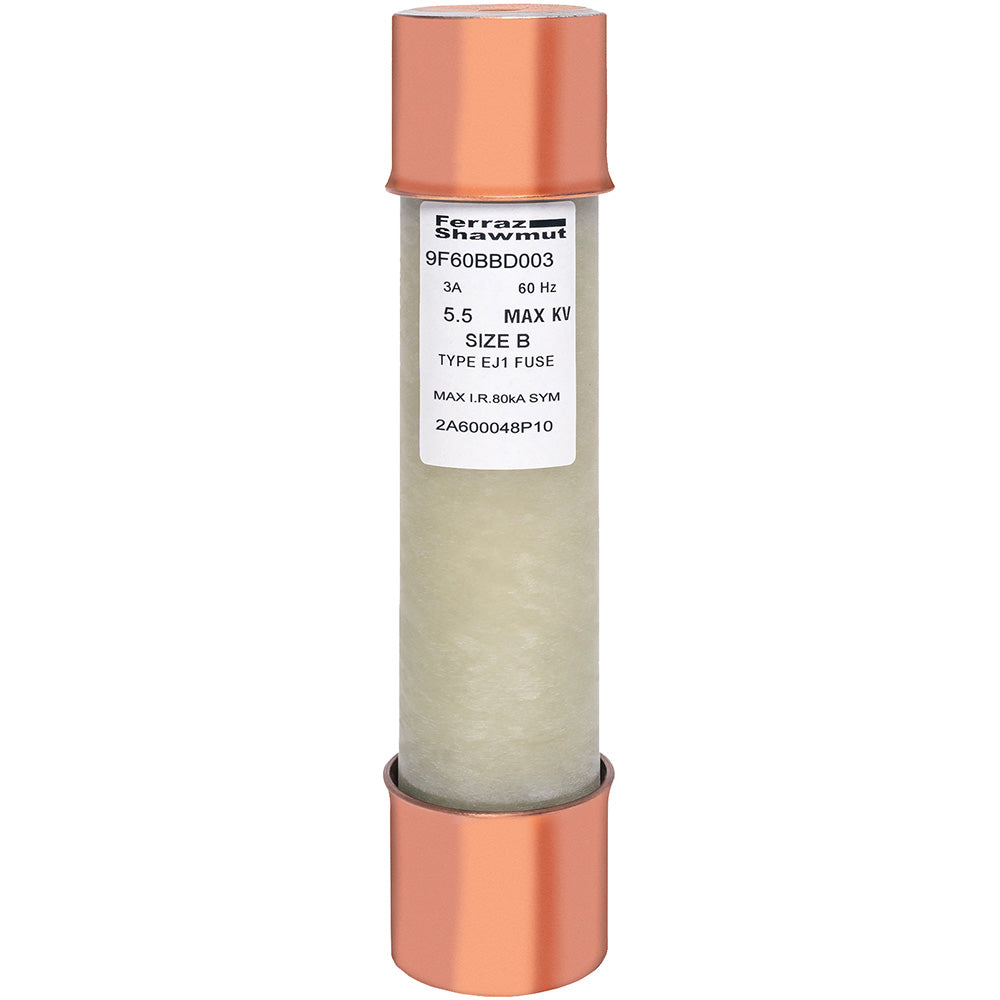

Mersen 9F60BBD003 - Medium Voltage Fuse 5500V 3A (Class E, 63kA AIC)

The Mersen 9F60BBD003 is a medium voltage fuse designed for overcurrent protection in industrial power distribution systems, rated for 5500V AC applications with a 3A current rating. Constructed as a single-barrel Class E fuse, it features a 1.56-inch diameter and provides high interrupting capacity of 63kA at 5.5kV for reliable circuit protection. This 5.19 lb fuse meets industry standards for medium voltage applications and is engineered for use with 6-inch clip center mounting configurations. Typical applications include motor protection, transformer circuits, and feeder protection in industrial facilities and utility power systems.

Key Features & Specifications

• Type: Medium Voltage Fuse, Class E, Single Barrel Construction
• Voltage Rating: 5500V AC
• Current Rating: 3A
• Dimensions: 1.56" Diameter
• Standards: Class E Rating
• Applications: Industrial Power Distribution, Motor Protection, Transformer Circuits
• AIC Rating: [email protected]
• Barrels: 1
• Clip Center: 6 inches
• Weight: 5.19 lb
• Family: 9F60 Series

Product Identification

• UPC: 78200139790
• GTIN: 00782001397906
