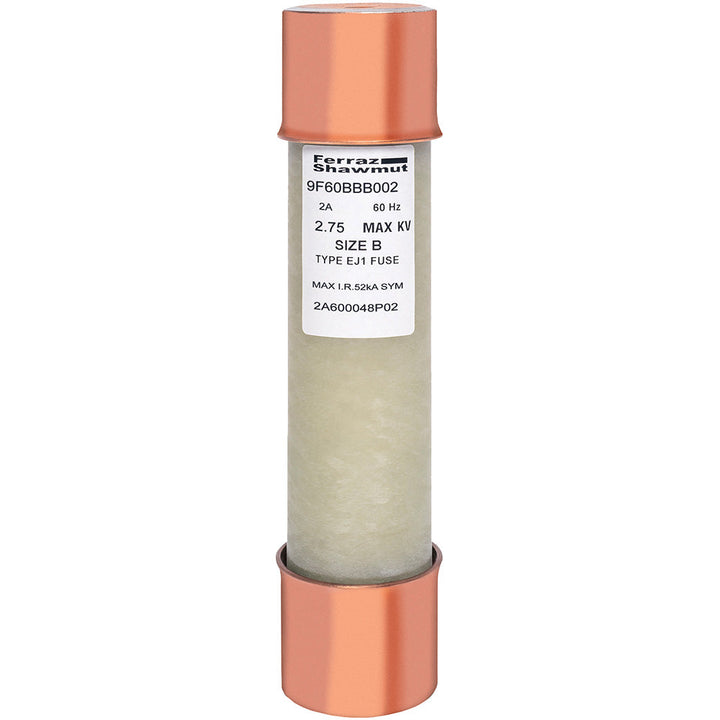

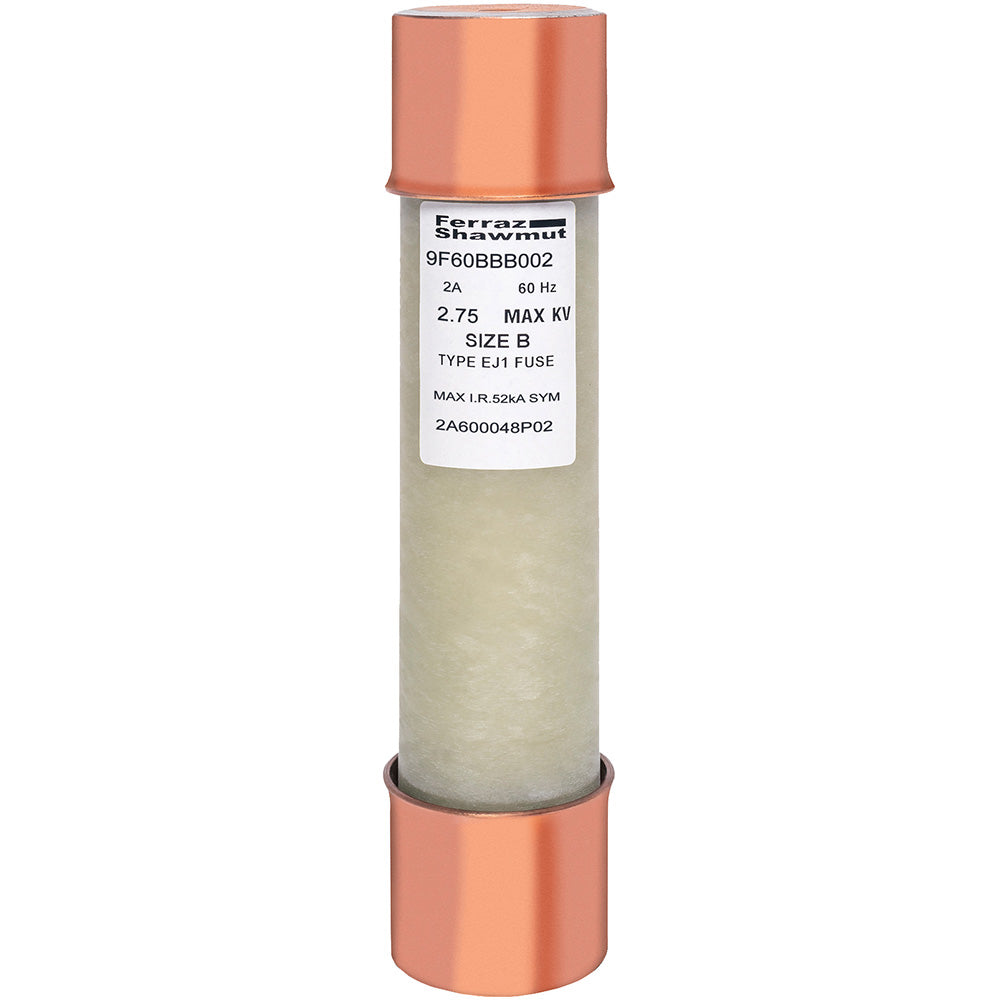

Mersen 9F60BBB002 - Class E Medium Voltage Fuse 2A 2750V (52kA AIC Rating)

The Mersen 9F60BBB002 is a Class E medium voltage fuse engineered to provide reliable overcurrent protection for industrial power distribution systems. It features a 2750V voltage rating and a 2A current rating, ensuring safe operation under specified electrical conditions. The fuse is constructed as a single-barrel unit with a 1.56-inch diameter and 6-inch clip center spacing, contributing to its robust physical design. This component complies with industry standards for medium voltage protection and is designed for demanding applications including motor control centers, transformers, and feeder circuits where a 52kA interrupting rating at 2.75kV is required.

Key Features & Specifications

• Type: Medium Voltage Fuse, Class E, Single Barrel
• Voltage Rating: 2750V AC
• Current Rating: 2A
• Dimensions: 1.56" Diameter, 6" Clip Center
• Standards: Class E Fuse
• Applications: Industrial Power Distribution, Motor Control Centers, Transformer Protection
• AIC rating: 52kA @ 2.75kV
• Barrels: 1
• Class Rating: E
• Diameter: 1.56 inches
• Clip Center: 6 inches
• Weight: 5.19 lb

Product Identification

• UPC: 782001397852
• GTIN: 00782001397852
