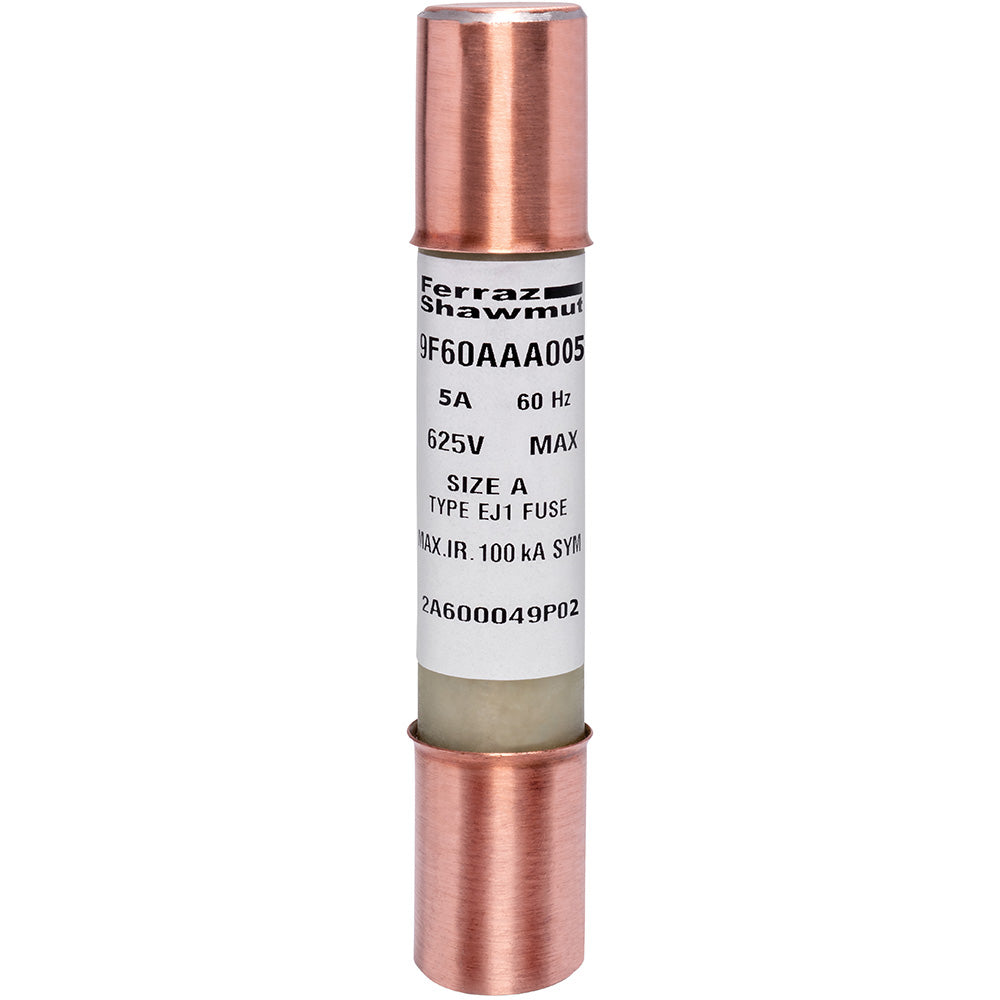

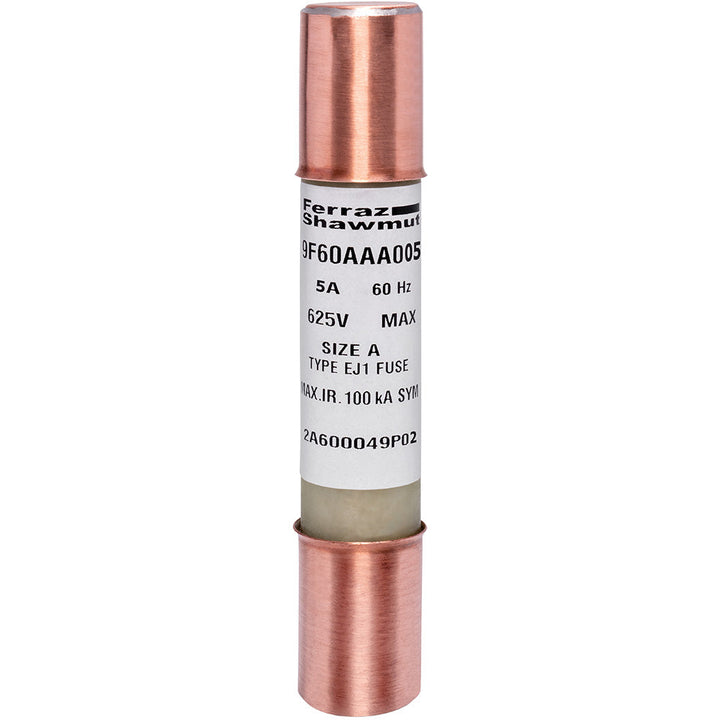

Mersen 9F60AAA005 - Class E Medium Voltage Fuse 5A 625V (100kA AIC Rating)

Mersen 9F60AAA005 is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. This Class E rated fuse operates at 625V AC with a 5A current rating and provides 100kA interrupting capacity at 0.625kV for reliable circuit protection. The single-barrel construction features a 0.81-inch diameter body with 4.25-inch clip center spacing and weighs 5 pounds, ensuring robust performance in demanding environments. Compliant with industry standards for medium voltage applications, this 9F60 Series fuse delivers precise protection for motor circuits, transformer primaries, and feeder circuits where high fault current interruption is critical.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating, single-barrel construction
• Voltage Rating: 625V AC
• Current Rating: 5A
• Dimensions: 0.81-inch diameter, 4.25-inch clip center spacing
• Standards: Industry standards for medium voltage fuses
• Applications: Motor circuits, transformer primaries, feeder circuits, industrial power distribution
• AIC rating: 100kA @ 0.625kV
• Class Rating: E
• Barrels: 1
• Weight: 5 lb
• Family: 9F60 Series
• Item Subcategory: Medium Voltage

Product Identification

• GTIN: 00782001397807
