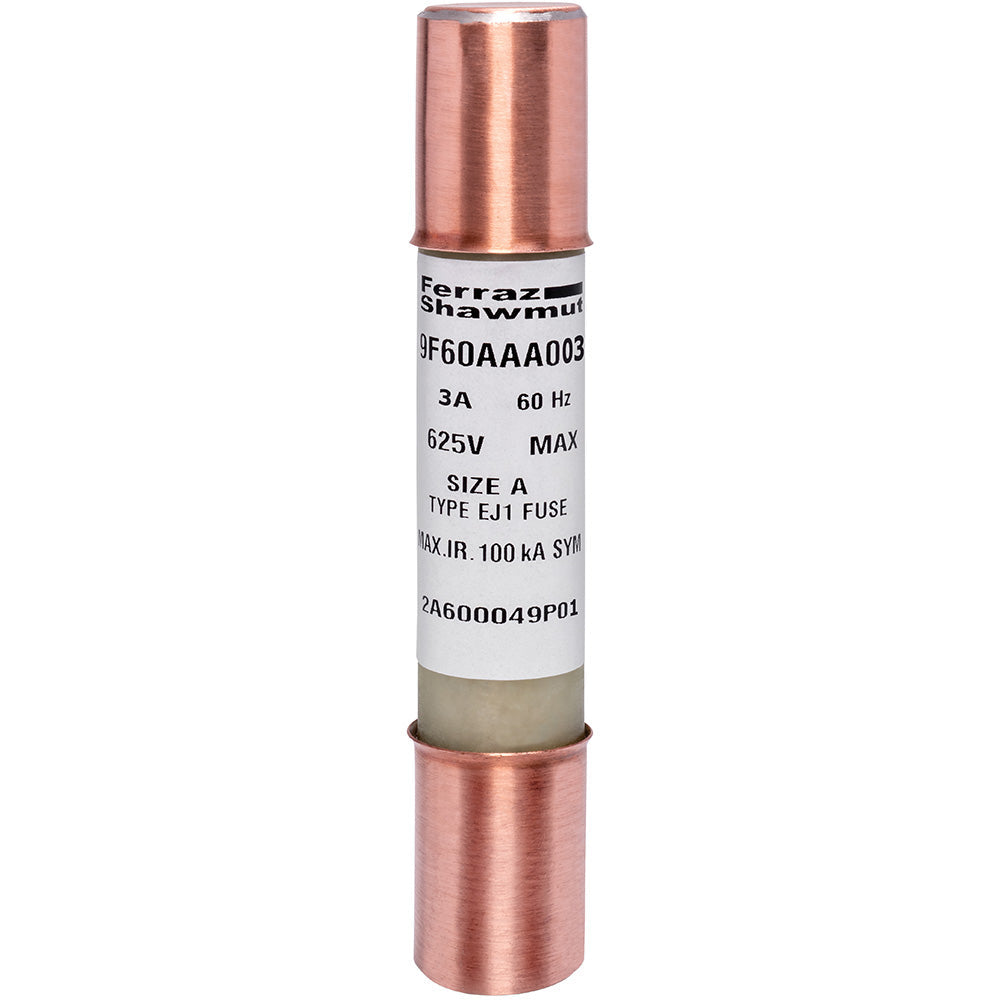

Mersen 9F60AAA003 - Medium Voltage Fuse Class E 3A 625V (100kA AIC)

Mersen 9F60AAA003 is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. This Class E rated fuse operates at 625V AC with a 3A current rating and provides 100kA interrupting capacity at 0.625kV for reliable circuit protection. The single-barrel construction features a 0.81-inch diameter body with 4.25-inch clip center spacing and weighs 5 lb, ensuring robust performance in demanding environments. Compliant with industry standards for medium voltage applications, this 9F60 Series fuse delivers precise protection for motor circuits, transformer primaries, and industrial control equipment where selective coordination and high fault current interruption are critical requirements.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating, single-barrel construction
• Voltage Rating: 625V AC
• Current Rating: 3A
• Dimensions: 0.81-inch diameter, 4.25-inch clip center spacing
• Standards: Class E fuse standards for medium voltage applications
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: 100kA @ 0.625kV
• Weight: 5 lb
• Family: 9F60 Series
• Barrels: 1
• Class Rating: E

Product Identification

• GTIN: 00782001397791
