Thomas & Betts 9C54U4 - Female Connector 50A 480V (3-Pole 4-Wire IP67)
Thomas & Betts 9C54U4 - Female Connector 50A 480V (3-Pole 4-Wire IP67)

Thomas & Betts 9C54U4 - Female Connector 50A 480V (3-Pole 4-Wire IP67)

Thomas & Betts
Price
Save $117.91
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price

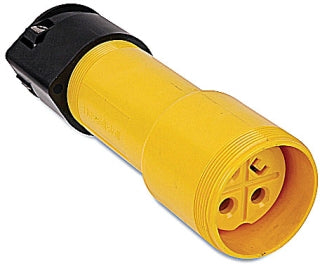

Thomas & Betts 9C54U4 is a DuraGard female connector designed for establishing waterproof electrical connections in demanding industrial and commercial environments. This 3-pole, 4-wire device is rated for 50 amps at 480 VAC, ensuring reliable power delivery in harsh conditions. The connector features a thermoplastic enclosure with a solid brass contact assembly, measures 2.13 inches in diameter by 6.25 inches in length, and weighs 5.19 lb, with an IP67-rated enclosure for maximum protection against water and dust ingress. It is certified to UL and CSA standards for safety and performance. Typical applications include providing secure, waterproof connections in industrial settings, outdoor power distribution, and commercial facilities requiring robust environmental sealing.

Key Features & Specifications
  • Type: Female Connector
  • Series: DuraGard
  • Amperage Rating: 50 A
  • Voltage Rating: 480 VAC
  • Poles: 3
  • Wires: 4
  • Enclosure Rating: IP67
  • Material: Thermoplastic, Solid Brass
  • Mounting Type: Surface Mount
  • Certifications: UL, CSA
  • Application: Waterproof Connections
  • Dimensions: 2.13 in Dia x 6.25 in L
  • Weight: 5.19 lb


Product Identification
  • UPC: 708917018810
  • GTIN: 00708917018810
