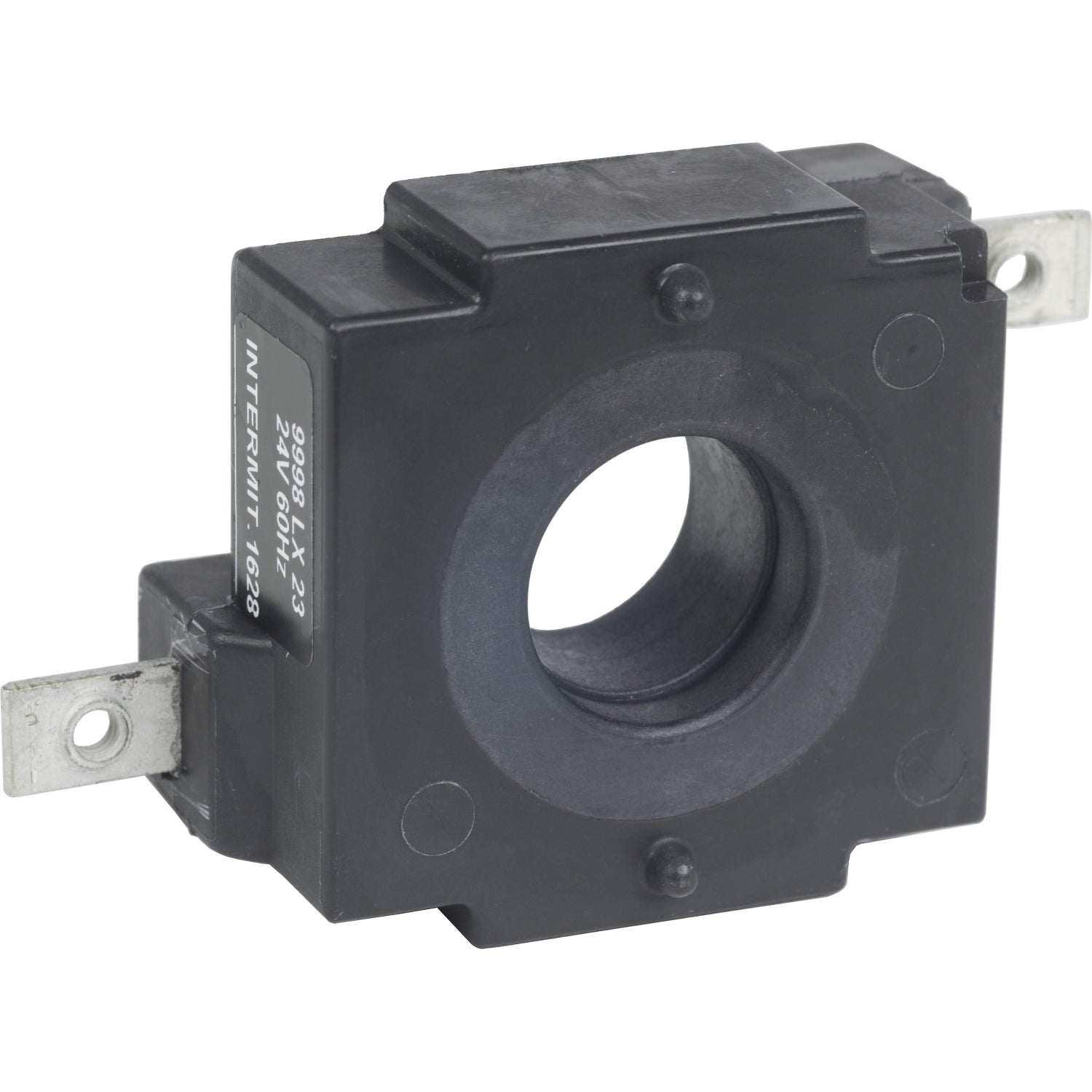

Schneider Electric 9998LX51 - Magnetic Coil 208V 4000A Draw-Out
Schneider Electric 9998LX51 - Magnetic Coil 208V 4000A Draw-Out

Schneider Electric 9998LX51 - Magnetic Coil 208V 4000A Draw-Out

Square D
Price
Save $-26.19
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Schneider Electric 9998LX51 is a magnetic coil subcategory component designed for use in draw-out circuit breaker applications to provide motor control and protection. This solid-state device operates at 208V with a 4000A current rating and a 100kA interrupting capacity at 480V, supporting three-phase, three-pole configurations. The component measures 1.8 in (44.5 mm) in height, 2.5 in (62.5 mm) in width, and 1.1 in (28.7 mm) in depth, weighing 5.19 lb, and is manufactured in Mexico. It incorporates LSH (Long-Time, Short-Time, and High-Range Instantaneous) protection functions for precise overcurrent management. This unit is intended for industrial power distribution systems requiring high-capacity, solid-state trip units in draw-out breaker assemblies.

Key Features & Specifications
  • Type: Magnetic Coil
  • Voltage Rating: 208V
  • Current Rating: 4000A
  • Dimensions: 1.8 in (44.5 mm) x 2.5 in (62.5 mm) x 1.1 in (28.7 mm) (Height x Width x Depth)
  • Standards: Not specified
  • Applications: Industrial motor control and circuit protection
  • Poles: 3
  • Phase: 3
  • Connection: Draw-Out
  • Protection: Solid State
  • AIC rating: 100kA@480V
  • Functions: LSH - Long-Time, Short-Time and High-Range Instantaneous
  • Weight: 5.19 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: Not available
  • GTIN: Not available
