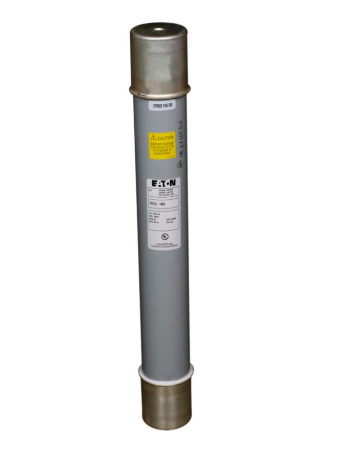

Eaton 9570D12G05 is a medium voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This Class C fuse provides reliable overcurrent protection with a 40A current rating and 15.5kV voltage rating, capable of interrupting fault currents up to 50kA at 15.5kV. The single-barrel construction features a compact 2-inch diameter design weighing 3 lb, utilizing current-limiting technology for rapid fault clearing. As part of Eaton's CX family, this fuse meets industry standards for medium voltage applications including motor protection, transformer protection, and feeder circuit protection in demanding industrial environments.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, Class C rating, single-barrel construction
  • Voltage Rating: 15,500V AC
  • Current Rating: 40A
  • Dimensions: 2-inch diameter
  • Standards: Industrial medium voltage protection standards
  • Applications: Industrial power distribution, motor protection, transformer protection
  • AIC rating: [email protected]
  • Weight: 3 lb
  • Family: CX
  • Barrels: 1
  • Class Rating: C
