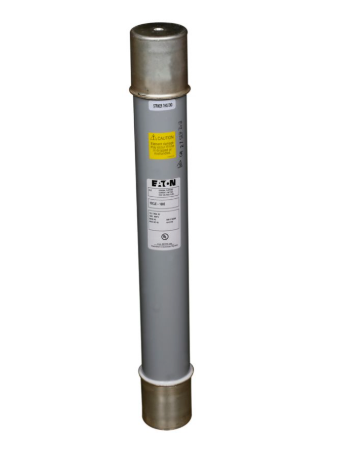

Eaton 9570D12G04 - Medium Voltage Fuse 30A (15.5kV, 50kA AIC)
Eaton 9570D12G04 - Medium Voltage Fuse 30A (15.5kV, 50kA AIC)
Eaton 9570D12G04 - Medium Voltage Fuse 30A (15.5kV, 50kA AIC)
Eaton 9570D12G04 - Medium Voltage Fuse 30A (15.5kV, 50kA AIC)

Eaton 9570D12G04 - Medium Voltage Fuse 30A (15.5kV, 50kA AIC)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 9570D12G04 is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. This Class C fuse features a 30A current rating and 15.5kV voltage rating with an interrupting capacity of 50kA at 15.5kV for reliable circuit protection. The single-barrel construction measures 2 inches in diameter and weighs 3 lb, utilizing robust materials suitable for demanding environments. Engineered to meet industry standards for medium voltage applications, this CX family fuse provides essential protection for transformers, motors, and feeder circuits in utility and industrial power systems.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, Class C, single-barrel construction
  • Voltage Rating: 15,500V AC
  • Current Rating: 30A
  • Dimensions: 2" diameter
  • Standards: Industry standards for medium voltage protection
  • Applications: Industrial power distribution, transformer protection, motor circuits
  • AIC rating: 50kA @ 15.5kV
  • Class Rating: C
  • Barrels: 1
  • Weight: 3 lb
  • Family: CX
  • Item Subcategory: Medium Voltage
