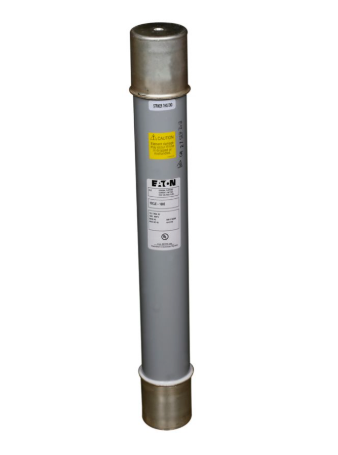

Eaton 9570D12G03 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. This Class C fuse operates at 15.5kV with a 25A current rating and provides 50kA interrupting capacity at 15.5kV for reliable fault protection. The single-barrel construction features a 2-inch diameter and weighs 3 lb, utilizing robust materials suitable for demanding electrical environments. As part of Eaton's CX family, this fuse meets industry standards for medium voltage applications including industrial plants, utility substations, and large commercial facilities where high-voltage circuit protection is critical.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, Class C rating, single-barrel construction
  • Voltage Rating: 15,500V AC
  • Current Rating: 25A
  • Dimensions: 2-inch diameter
  • Standards: Meets industry standards for medium voltage protection
  • Applications: Industrial power distribution, utility substations, large commercial facilities
  • Weight: 3 lb
  • Barrels: 1
  • AIC rating: [email protected]
  • Class Rating: C
  • Family: CX
  • Item Subcategory: Medium Voltage
