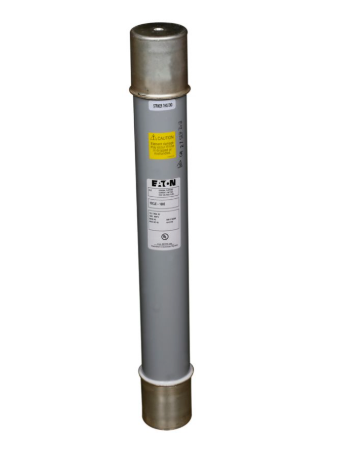

Eaton 9570D12G02 - Medium Voltage Fuse 20A 15.5kV (50kA AIC Class C)
Eaton 9570D12G02 - Medium Voltage Fuse 20A 15.5kV (50kA AIC Class C)

Eaton 9570D12G02 - Medium Voltage Fuse 20A 15.5kV (50kA AIC Class C)

Eaton
Price
Save $-541.64
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Eaton 9570D12G02 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This Class C fuse operates at 15.5kV with a 20A current rating and provides 50kA interrupting capacity at 15.5kV for reliable fault protection. The single-barrel construction features a 2-inch diameter and weighs 4 lb, utilizing current-limiting technology to rapidly clear faults. Designed to meet industry standards for medium voltage applications, this CX family fuse is typically deployed in motor control centers, transformer protection, and industrial power distribution systems requiring robust overcurrent protection.

Key Features & Specifications
  • Type: Current-limiting medium voltage fuse, single barrel construction
  • Voltage Rating: 15500V AC
  • Current Rating: 20A
  • Dimensions: 2-inch diameter
  • Standards: Class C rating
  • Applications: Industrial power systems, motor control centers, transformer protection
  • AIC rating: [email protected]
  • Class Rating: C
  • Barrels: 1
  • Weight: 4 lb
  • Family: CX
  • Item Subcategory: Medium Voltage
