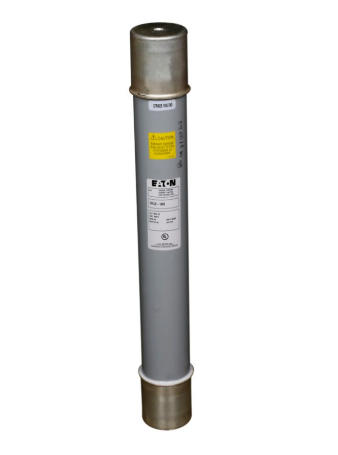

Eaton 9570D02G06 - Medium Voltage Fuse 15.5kV 100A (50kA AIC, Class C)
Eaton 9570D02G06 - Medium Voltage Fuse 15.5kV 100A (50kA AIC, Class C)

Eaton 9570D02G06 - Medium Voltage Fuse 15.5kV 100A (50kA AIC, Class C)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Eaton 9570D02G06 is a medium voltage current-limiting fuse from the CX family, specifically the CXN type, engineered to provide reliable overcurrent and short-circuit protection in demanding electrical distribution systems. It features a 15.5kV voltage rating and a 100A current rating, with a high interrupting capacity of 50kA at 15.5kV. The fuse is constructed as a single-barrel unit with a 4-inch diameter, a Class C rating, and a weight of 3 lb, ensuring robust performance. It is designed to meet stringent industry standards for medium voltage applications. This fuse is typically employed in industrial power distribution, motor protection, and transformer circuits where high fault current interruption is critical.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, CXN Type, Single Barrel
  • Voltage Rating: 15500V AC
  • Current Rating: 100A
  • Dimensions: 4 inch Diameter
  • Standards: Class C Rating
  • Applications: Industrial Power Distribution, Motor Protection, Transformer Circuits
  • AIC rating: [email protected]
  • Barrels: 1
  • Weight: 3 lb
  • Family: CX
  • Item Subcategory: Medium Voltage
