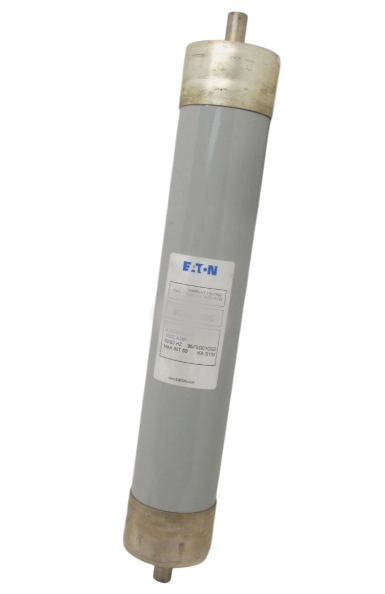

Eaton 9570D02G05 - Medium Voltage Current-Limiting Fuse 85A (15.5kV, 50kA AIC)
Eaton 9570D02G05 - Medium Voltage Current-Limiting Fuse 85A (15.5kV, 50kA AIC)

Eaton 9570D02G05 - Medium Voltage Current-Limiting Fuse 85A (15.5kV, 50kA AIC)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 9570D02G05 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. This Class C fuse features a 15.5kV voltage rating and 85A current rating with exceptional 50kA interrupting capacity at 15.5kV for reliable fault protection. The single-barrel construction with 4-inch diameter and 3 lb weight provides robust physical characteristics suitable for demanding environments. Engineered to meet industry standards for medium voltage applications, this CXN-type fuse from the CX family delivers precise protection for transformers, motors, and capacitor banks in utility and industrial power systems.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, CXN type, single barrel construction
  • Voltage Rating: 15,500V AC
  • Current Rating: 85A
  • Dimensions: 4-inch diameter
  • Standards: Class C rating
  • Applications: Industrial power distribution, transformer protection, motor circuits, capacitor banks
  • AIC rating: [email protected]
  • Class Rating: C
  • Barrels: 1
  • Weight: 3 lb
  • Family: CX
  • Item Subcategory: Medium Voltage
