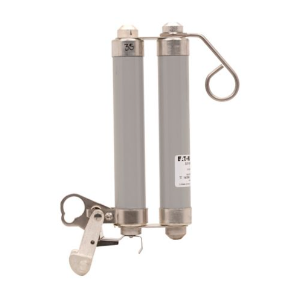

Eaton 9570D01G04 - Medium Voltage Current-Limiting Fuse 150A @ 8300V (50kA AIC)
Eaton 9570D01G04 - Medium Voltage Current-Limiting Fuse 150A @ 8300V (50kA AIC)

Eaton 9570D01G04 - Medium Voltage Current-Limiting Fuse 150A @ 8300V (50kA AIC)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 9570D01G04 is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. This Class C fuse operates at 8300V AC with a 150A current rating and delivers 50kA interrupting capacity at its rated voltage. The single-barrel construction features a 4-inch diameter and weighs 17 lb, providing robust physical characteristics for demanding environments. Engineered to meet industry standards for medium voltage applications, this CXN-type fuse from the CX family ensures reliable overcurrent protection in utility substations, industrial plants, and large commercial facilities where high-voltage circuit interruption is critical.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, CXN type, single-barrel construction
  • Voltage Rating: 8300V AC
  • Current Rating: 150A
  • Dimensions: 4-inch diameter
  • Standards: Class C rating
  • Applications: Industrial power distribution, utility substations, large commercial facilities
  • AIC rating: [email protected]
  • Weight: 17 lb
  • Family: CX
  • Barrels: 1
  • Class Rating: C
