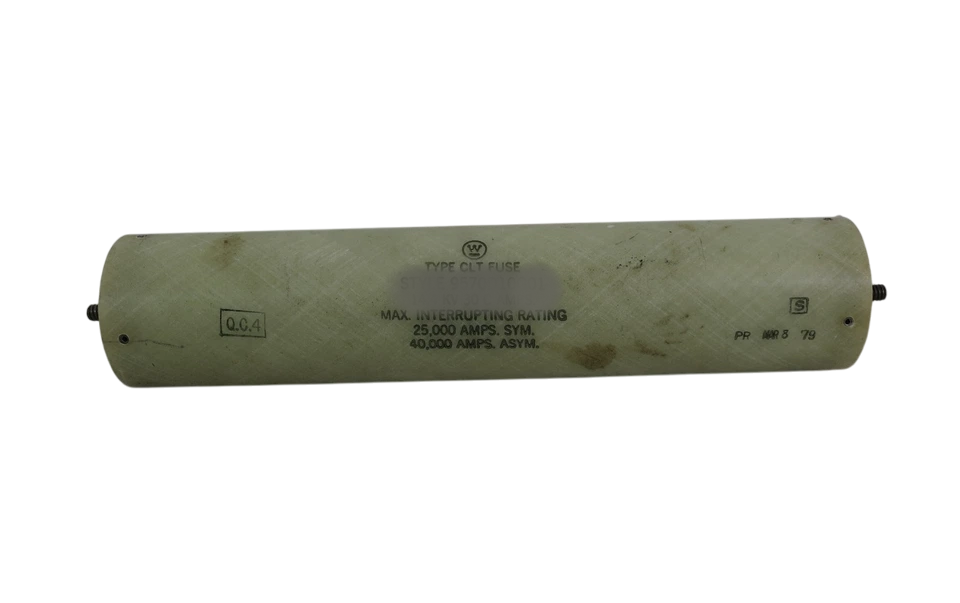

Eaton 9570D01G03 - Medium Voltage Fuse 125A (8300V, 50kA AIC)
Eaton 9570D01G03 - Medium Voltage Fuse 125A (8300V, 50kA AIC)

Eaton 9570D01G03 - Medium Voltage Fuse 125A (8300V, 50kA AIC)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 9570D01G03 is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. This Class C fuse features a 125A current rating and 8300V voltage rating with an interrupting capacity of 50kA at 8.3kV, providing reliable overcurrent protection for demanding applications. The single-barrel CXN-type construction measures 4 inches in diameter and weighs 17 lb, engineered for robust performance in harsh industrial environments. Compliant with industry standards for medium voltage protection, this Eaton CX family fuse delivers precise clearing characteristics for critical power circuits including motor protection, transformer protection, and feeder circuit applications where high fault current interruption is required.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, CXN type, single barrel construction
  • Voltage Rating: 8300V AC
  • Current Rating: 125A
  • Dimensions: 4 inch diameter
  • Standards: Industry standards for medium voltage protection
  • Applications: Industrial power distribution, motor protection, transformer protection, feeder circuits
  • AIC rating: [email protected]
  • Class Rating: C
  • Barrels: 1
  • Weight: 17 lb
  • Family: CX
  • Item Subcategory: Medium Voltage
