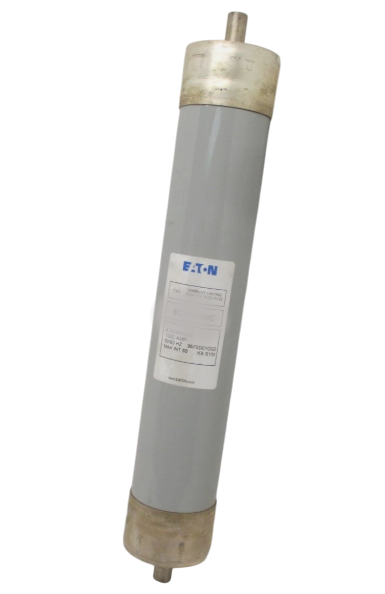

Eaton 9570D01G02 - Medium Voltage Fuse 100A (8300V, 50kA AIC)
Eaton 9570D01G02 - Medium Voltage Fuse 100A (8300V, 50kA AIC)
Eaton 9570D01G02 - Medium Voltage Fuse 100A (8300V, 50kA AIC)
Eaton 9570D01G02 - Medium Voltage Fuse 100A (8300V, 50kA AIC)

Eaton 9570D01G02 - Medium Voltage Fuse 100A (8300V, 50kA AIC)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 9570D01G02 is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. It features a 100A current rating and 8300V voltage rating with 50kA interrupting capacity at 8.3kV, providing reliable overcurrent protection for critical electrical equipment. The fuse construction utilizes a single-barrel design with Class C rating and measures 3 inches in diameter with a weight of 9 lb, engineered for robust performance in demanding environments. This CX family CXN type fuse complies with industry standards for medium voltage applications, making it suitable for transformer protection, motor circuits, and feeder protection in industrial facilities and utility substations.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, CXN type, single-barrel construction
  • Voltage Rating: 8300V AC
  • Current Rating: 100A
  • Dimensions: 3" diameter
  • Standards: Class C rated
  • Applications: Industrial power distribution, transformer protection, motor circuits
  • AIC rating: [email protected]
  • Family: CX
  • Barrels: 1
  • Weight: 9 lb
  • Item Subcategory: Medium Voltage
