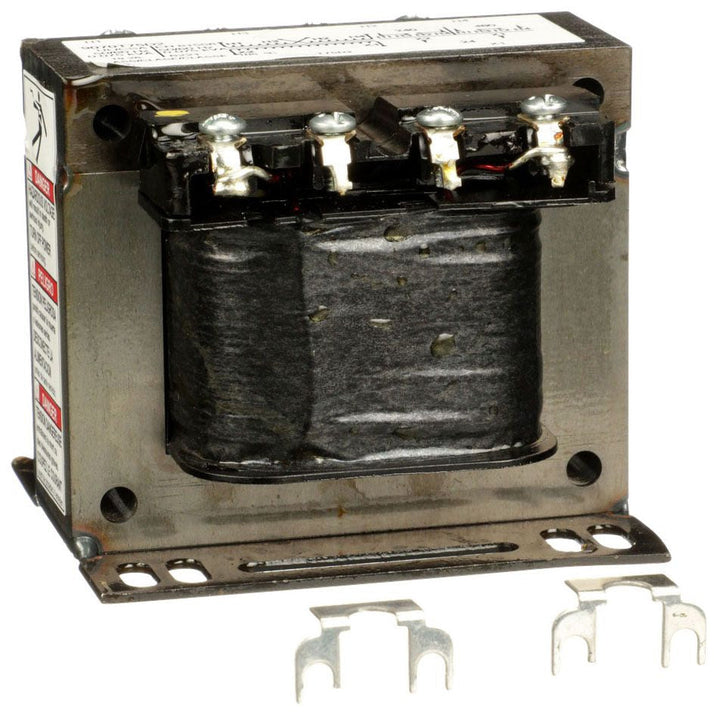

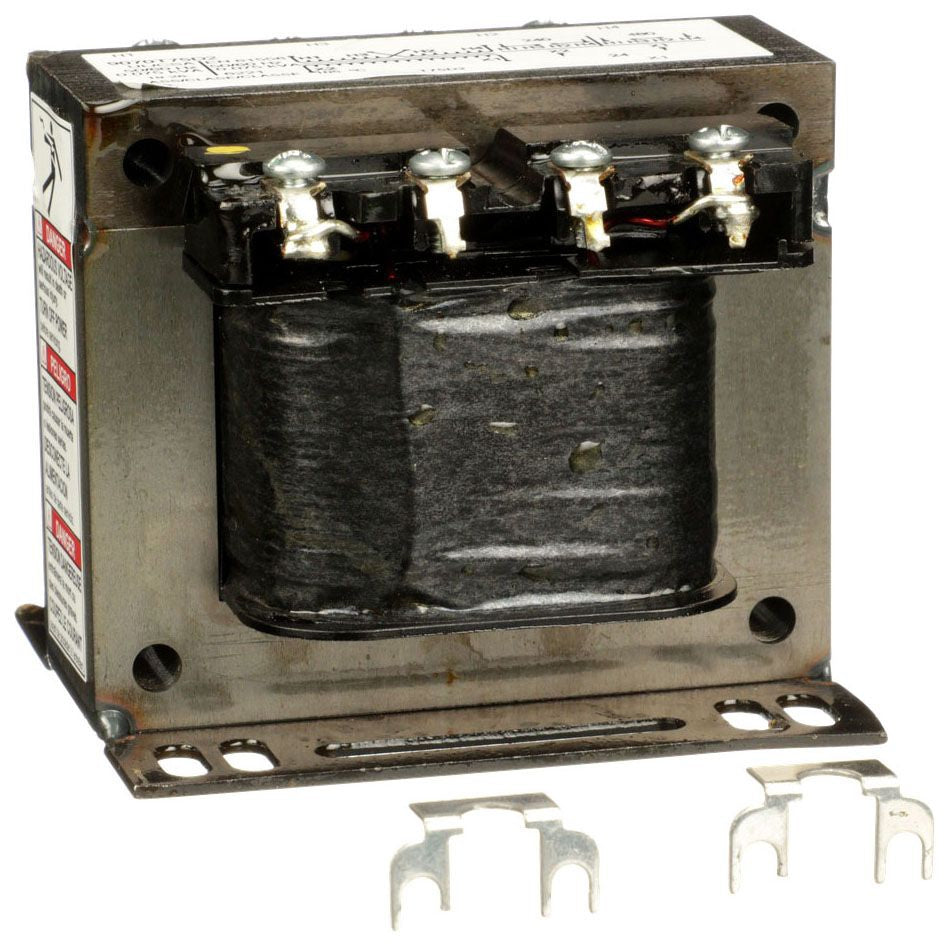

Square D 9070T75D2 is a control transformer designed for industrial motor control applications, providing reliable voltage transformation for control circuits. This unit operates with a 75VA power rating and is engineered to handle standard control voltages, ensuring consistent performance in demanding environments. The transformer measures 2.89 inches in height, 3.38 inches in width, and 3.34 inches in depth, weighing 3.801 lb, and features a compact, robust construction suitable for panel mounting. It is certified under CSA File LR37055 Guide 184-N-90, UL Listed File E61239, and complies with REACH and RoHS standards, ensuring adherence to safety and environmental regulations. Typical applications include motor control centers, industrial machinery, and automation systems requiring isolated control power.

Key Features & Specifications
  • Type: Control transformer, 75VA, copper windings, encapsulated construction
  • Voltage Rating: 600V AC maximum primary, 120V AC secondary typical
  • Current Rating: 0.625A at 120V AC
  • Dimensions: 2.89 in (73.41 mm) x 3.38 in (85.85 mm) x 3.34 in (84.84 mm) (Height x Width x Depth)
  • Standards: CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
  • Applications: Motor control circuits, industrial automation, panel building
  • Switch Type: Not applicable
  • Configuration: Single phase
  • Coil Voltage Maximum: 600V AC
  • Temp Rating: 55°C rise
  • Shipping Dimensions: 3.5 in x 4.0 in x 4.0 in
  • Phase: 1
  • Voltage: 600V AC primary, 120V AC secondary
  • Amperage: 0.625A
  • AIC rating: Not applicable
  • Connection: Screw terminals
  • Poles: 2
  • Protection: Thermal overload protection
  • Functions: Voltage step-down
  • Frame Size: 9070T
  • Trip Type: Not applicable
  • Panel Type: Not applicable
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 24V AC
  • Control Voltage Maximum: 600V AC
  • MCM Size: Not applicable
  • Metal Type: Steel enclosure
  • Panel Style: Open style
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: 130°C (Class B)
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Panel mount
  • Hz: 50/60
  • Coil Material: Copper
  • Horse Power: Not applicable
  • Aux Contacts: Not applicable
  • CPT: Yes
  • Full Load Amps: 0.625A
  • Dist Voltage: Not applicable
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 0.625A
  • Full Load Amp Minimum: 0.625A
  • Enclosure: Open
  • Relay Style: Not applicable
  • Coil Voltage Minimum: 24V AC
  • Wire: Not applicable
  • Amperage Maximum: 0.625A
  • Amperage Minimum: 0.625A
  • Nema Rating: Not applicable
  • Switch Style: Not applicable
  • Wire Size: 14 AWG
  • Certification: CSA, UL, REACH, RoHS
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single
  • Standards: CSA, UL, REACH, RoHS
  • Compatible Frames: Not applicable
  • Installation Type: Panel mount
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Not applicable
  • Current Rating: 0.625A
  • Reverse Standoff Voltage: Not applicable
  • Watts: 75
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 55°C rise
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 785901904977
  • GTIN: 785901904977
