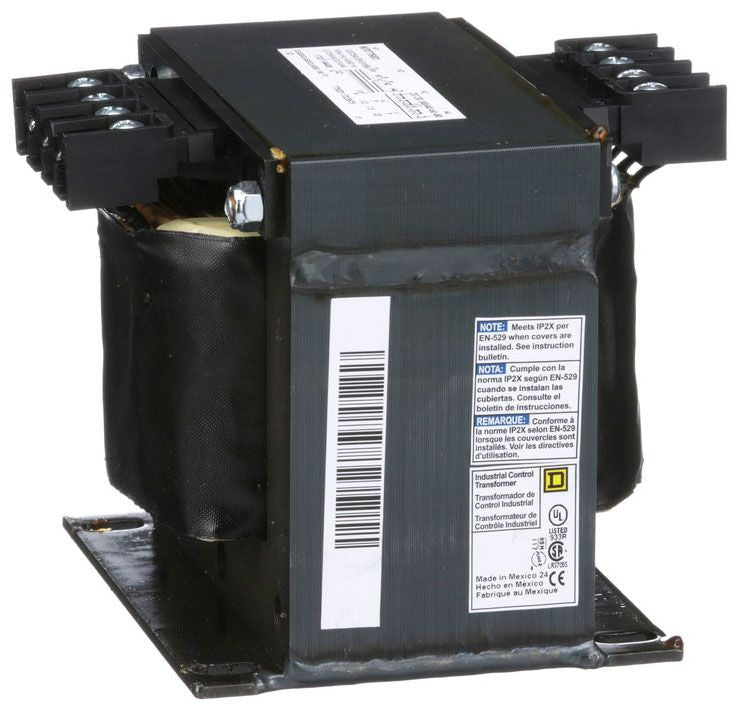

Schneider Electric 9070T750D1 - Control Transformer 750VA 240/480V
Schneider Electric 9070T750D1 - Control Transformer 750VA 240/480V

Schneider Electric 9070T750D1 - Control Transformer 750VA 240/480V

Square D
Price
Save $42.57
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Schneider Electric 9070T750D1 is a single-phase industrial control transformer designed for reliable power conversion in demanding motor control applications. This unit provides a 750 VA power rating with a 240/480V primary and 120V secondary voltage, featuring a 115°C temperature rise and copper windings for efficient performance. The transformer measures 4.51 in (114.55 mm) in height, 5.25 in (133.35 mm) in width, and 5.61 in (142.49 mm) in depth, weighing 17.939 lb, with screw clamp terminals for secure electrical connections. It is UL Listed under File E61239 and CSA Certified under File LR37055 Guide 184-N-90, and complies with REACH and RoHS standards. This open-type device is suited for panel builders and machinery OEMs requiring a robust control power source.

Key Features & Specifications
  • Type: Control Transformer
  • Power Rating: 750 VA
  • Primary Voltage: 240/480 V
  • Secondary Voltage: 120 V
  • Phase: 1-Phase
  • Temperature Rise: 115 °C
  • Electrical Connection: Screw clamp terminals
  • Material: Copper winding
  • Enclosure Type: Open device (not rated)
  • Dimensions: 4.51 in (114.55 mm) x 5.25 in (133.35 mm) x 5.61 in (142.49 mm) (Height x Width x Depth)
  • Weight: 17.939 lb
  • Certification: CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901904717
  • GTIN: 785901904717
