Square D 9070T50D2 - Control Transformer 50 VA 600V
Square D 9070T50D2 - Control Transformer 50 VA 600V

Square D 9070T50D2 - Control Transformer 50 VA 600V

Square D
Price
Save $-25.10
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

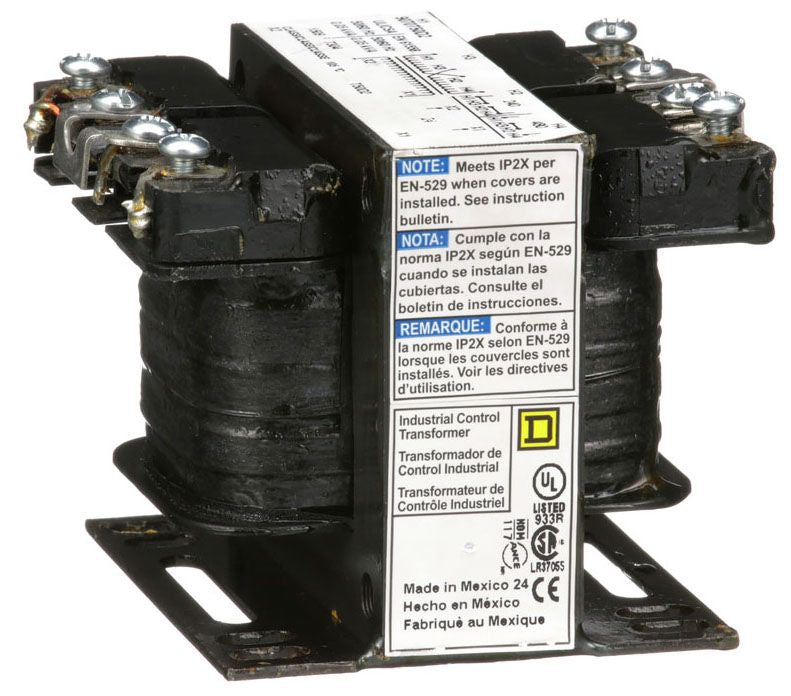

The Square D 9070T50D2 is a control transformer designed to step down voltage for motor control circuits and industrial automation systems. It is rated for a primary voltage of up to 600V and a secondary voltage of 120V, with a 50 VA power rating, and operates at 50/60 Hz. The unit measures 2.58 in (65.53 mm) in height, 3 in (76.2 mm) in width, and 3.09 in (78.49 mm) in depth, weighing 2.56 lb, and features a compact, encapsulated construction for durability in harsh environments. It is UL Listed (File E61239) and CSA Certified (File LR37055 Guide 184-N-90), complying with REACH and RoHS standards. Typical applications include providing isolated control power for motor starters, contactors, and programmable logic controllers in industrial machinery and panel building.

Key Features & Specifications
  • Type: Control Transformer, encapsulated, 50 VA
  • Voltage Rating: 600V AC primary / 120V AC secondary
  • Current Rating: 0.083 A (primary) / 0.417 A (secondary)
  • Dimensions: 2.58 in (65.53 mm) x 3 in (76.2 mm) x 3.09 in (78.49 mm) (H x W x D)
  • Standards: UL Listed File E61239, CSA File LR37055 Guide 184-N-90, REACH, RoHS
  • Applications: Motor control circuits, industrial automation, panel building
  • Frequency Rating: 50/60 Hz
  • Weight: 2.56 lb
  • Section: Control
  • Family: 9070
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901904939
  • GTIN: 785901904939
