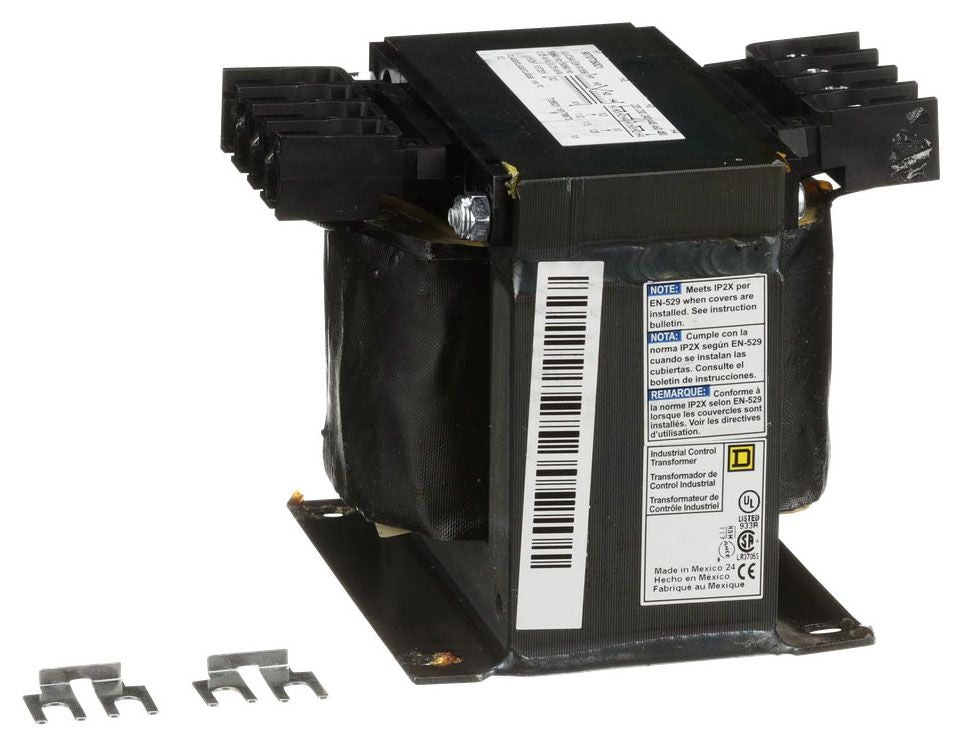

Square D 9070T350D1 - Control Transformer 350VA 600V
Square D 9070T350D1 - Control Transformer 350VA 600V

Square D 9070T350D1 - Control Transformer 350VA 600V

Square D
Price
Save $85.31
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Square D 9070T350D1 is a control transformer designed to step down voltage for industrial motor control circuits, providing reliable power isolation and protection for control components. This unit operates with a primary voltage rating suitable for 600V AC systems and delivers a secondary output, with a current rating of 350 VA to support typical control loads. The transformer measures 3.84 inches in height, 4.5 inches in width, and 5.11 inches in depth, weighing 10.741 lb, and features a robust construction with a metal enclosure for durability in harsh environments. It is certified under CSA File LR37055 Guide 184-N-90, UL Listed File E61239, and complies with REACH and RoHS standards, ensuring adherence to North American and international safety regulations. This transformer is commonly used in industrial automation, motor control centers, and panel building applications where precise voltage transformation is required for relays, contactors, and programmable logic controllers.

Key Features & Specifications
  • Type: Control transformer, dry-type, encapsulated coil
  • Voltage Rating: 600V AC primary, 120V AC secondary
  • Current Rating: 350 VA
  • Dimensions: 3.84 in (97.54 mm) x 4.5 in (114.3 mm) x 5.11 in (129.79 mm) (H x W x D)
  • Standards: CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
  • Applications: Industrial motor control circuits, panel building, automation systems
  • Switch Type: N/A
  • Configuration: Single-phase
  • Coil Voltage Maximum: 600V AC
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Shipping Dimensions: 3.84 in x 4.5 in x 5.11 in
  • Phase: Single
  • Voltage: 600V AC primary / 120V AC secondary
  • Amperage: 350 VA
  • AIC rating: N/A
  • Connection: Screw terminals
  • Poles: N/A
  • Protection: Overcurrent protection via primary fuse
  • Functions: Voltage step-down, isolation
  • Frame Size: N/A
  • Trip Type: N/A
  • Panel Type: N/A
  • Breaker Type: N/A
  • Control Voltage Minimum: 120V AC
  • Control Voltage Maximum: 600V AC
  • MCM Size: N/A
  • Metal Type: Steel enclosure
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: N/A
  • Insulation Temperature: 130 °C (Class B)
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: N/A
  • Class Rating: N/A
  • Diameter: N/A
  • Velocity: N/A
  • Clip Center: N/A
  • Clas: N/A
  • Mounting: Panel mount
  • Hz: 50/60 Hz
  • Coil Material: Copper
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: 2.9 A (secondary at 120V)
  • Dist Voltage: N/A
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: 2.9 A
  • Full Load Amp Minimum: N/A
  • Enclosure: Open style
  • Relay Style: N/A
  • Coil Voltage Minimum: 120V AC
  • Wire: N/A
  • Amperage Maximum: 2.9 A
  • Amperage Minimum: N/A
  • Nema Rating: N/A
  • Switch Style: N/A
  • Wire Size: 14 AWG (recommended)
  • Certification: CSA, UL, REACH, RoHS
  • Circuit Breaker Mounting Style: N/A
  • Terminal Connection: Screw clamp
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single-phase
  • Standards: CSA, UL, REACH, RoHS
  • Compatible Frames: N/A
  • Installation Type: Panel mount
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: N/A
  • Current Rating: 350 VA
  • Reverse Standoff Voltage: N/A
  • Watts: 350 VA
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 785901904694
  • GTIN: 785901904694
