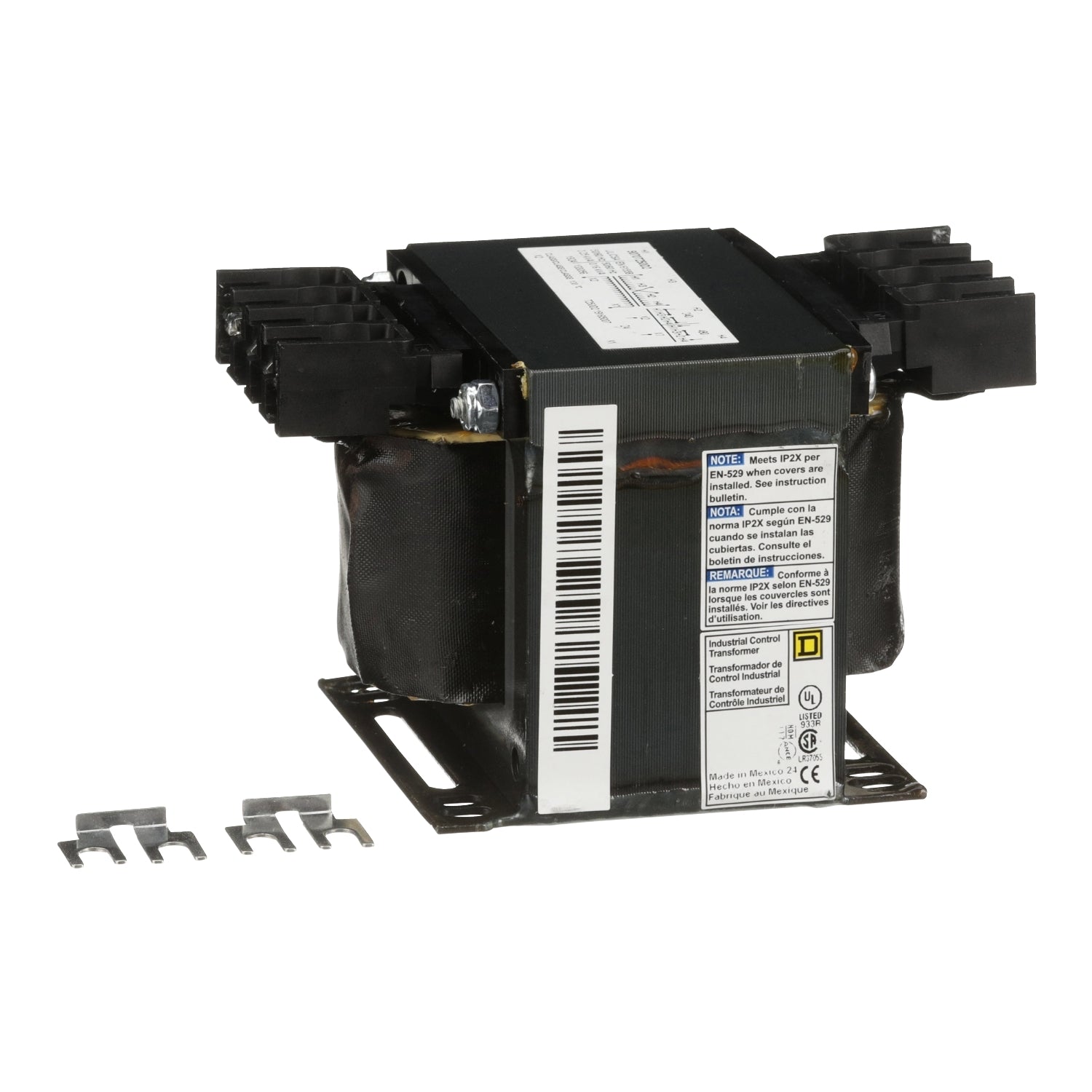

Square D 9070T250D2 - Control Transformer 250VA (240/480V to 24V)
Square D 9070T250D2 - Control Transformer 250VA (240/480V to 24V)

Square D 9070T250D2 - Control Transformer 250VA (240/480V to 24V)

Square D
Price
Save $-24.51
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D 9070T250D2 is a Type T industrial control transformer designed for stepping down primary voltage in motor control and general control circuit applications. This single-phase unit converts 240/480 VAC primary voltage to 24 VAC secondary voltage with a 250 VA power rating, operating at 50/60 Hz with an 80°C temperature rise and low impedance windings for excellent voltage regulation and high inrush current handling. The transformer measures 3.2 in (81.3 mm) in height, 3.75 in (95.25 mm) in width, and 5.3 in (134.6 mm) in depth, weighs 7.5 lb, and is constructed for reliable performance in demanding industrial environments. It is certified under CSA File LR37055 Guide 184-N-90, UL Listed File E61239, and complies with REACH and RoHS standards, with an operating temperature range of -13 to 158 °F (-25 to 70 °C). Typical applications include motor control centers, relays, starters, solenoids, and contactors in industrial automation and control systems.

Key Features & Specifications
  • Type: Type T Industrial Control Transformer
  • Power Rating: 250 VA
  • Primary Voltage: 240/480 VAC
  • Secondary Voltage: 24 VAC
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • Temperature Rise: 80°C
  • Low Impedance Windings for Voltage Regulation
  • Designed for Motor Control and Control Circuits
  • Manufacturer: Schneider Electric
  • Item Subcategory: Transformers
  • Family: 9070
  • Country of Origin: Mexico
  • Dimensions: 3.2 in (81.3 mm) x 3.75 in (95.25 mm) x 5.3 in (134.6 mm) (Height x Width x Depth)
  • Weight: 7.5 lb
  • Certification: CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Section: Control


Product Identification
  • UPC: 785901905110
  • GTIN: 00785901905110
