Square D 9070T250D13 - Control Transformer 250VA 480V/120V
Square D 9070T250D13 - Control Transformer 250VA 480V/120V

Square D 9070T250D13 - Control Transformer 250VA 480V/120V

Square D
Price
Save $70.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

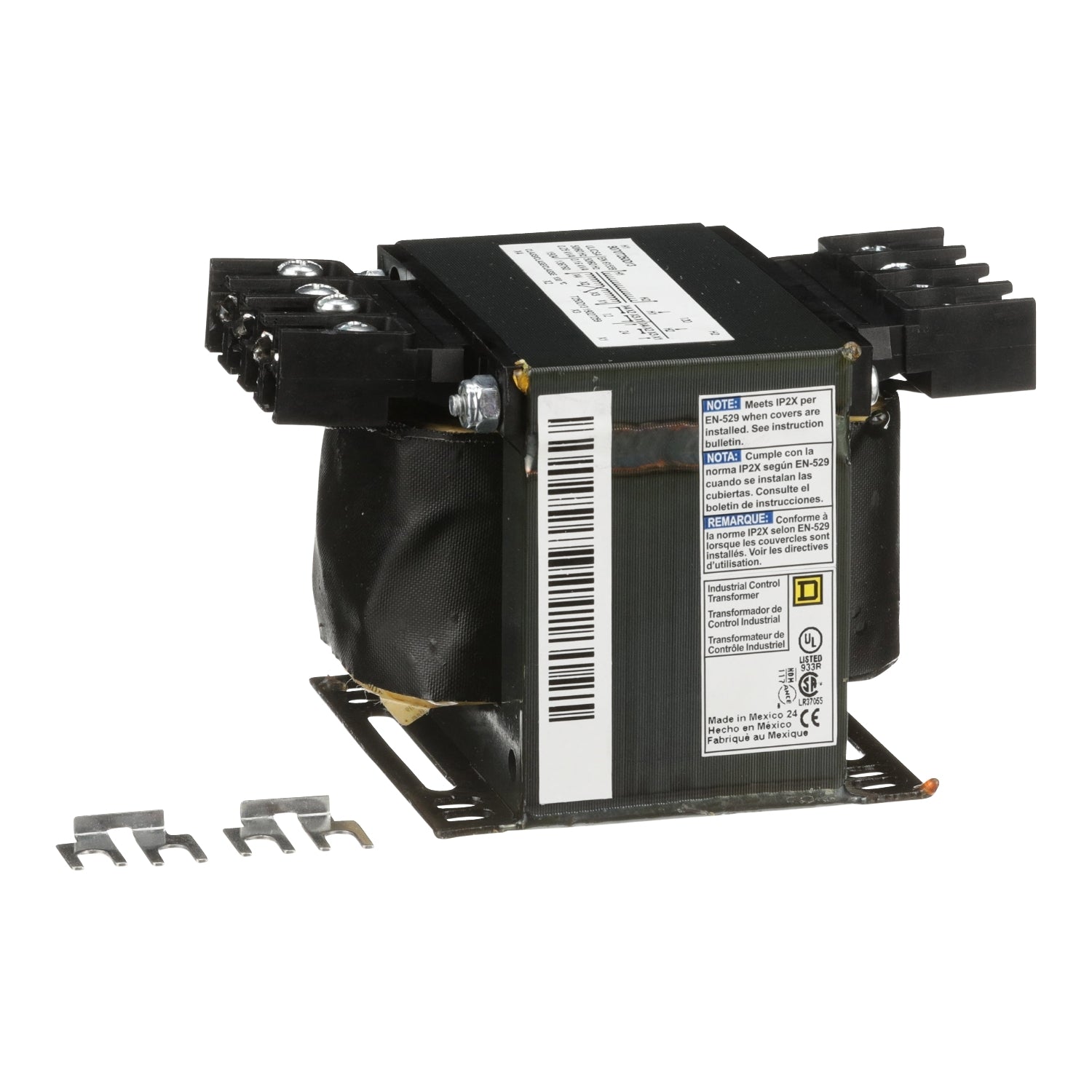

Square D 9070T250D13 is a control transformer designed for industrial motor control applications, providing reliable voltage conversion and isolation for control circuits. This unit operates with a primary voltage of 480V and a secondary voltage of 120V, supporting a 250VA power rating to handle typical control loads. The transformer measures 3.2 inches in height, 3.75 inches in width, and 5.3 inches in depth, weighing 8.06 lb, and features a robust construction suitable for panel mounting. It is UL Listed under File E61239 and CSA Certified under File LR37055 Guide 184-N-90, complying with REACH and RoHS standards. This component is commonly used in industrial environments to power contactors, relays, and programmable logic controllers within motor control centers and distribution panels.

Key Features & Specifications
  • Type: Control transformer, 250VA, 50/60 Hz, copper coil
  • Voltage Rating: 480V primary / 120V secondary
  • Current Rating: 2.08A primary / 2.08A secondary
  • Dimensions: 3.2 in (81.3 mm) x 3.75 in (95.25 mm) x 5.3 in (134.6 mm) (H x W x D)
  • Standards: UL Listed File E61239, CSA File LR37055 Guide 184-N-90, REACH, RoHS
  • Applications: Motor control circuits, industrial automation, panel building
  • Switch Type: Not applicable
  • Configuration: Single phase
  • Coil Voltage Maximum: 480V
  • Temp Rating: 55°C rise
  • Shipping Dimensions: 3.2 in x 3.75 in x 5.3 in
  • Phase: 1
  • Voltage: 480V primary / 120V secondary
  • Amperage: 2.08A
  • AIC rating: Not applicable
  • Connection: Screw terminals
  • Poles: Not applicable
  • Protection: Thermal overload protection (integrated)
  • Functions: Voltage step-down, isolation
  • Frame Size: 9070
  • Trip Type: Not applicable
  • Panel Type: Not applicable
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 120V
  • Control Voltage Maximum: 120V
  • MCM Size: Not applicable
  • Metal Type: Steel enclosure
  • Panel Style: Open style
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: 130°C (Class B)
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Panel mount
  • Hz: 50/60
  • Coil Material: Copper
  • Horse Power: Not applicable
  • Aux Contacts: Not applicable
  • CPT: Yes (Control Power Transformer)
  • Full Load Amps: 2.08A
  • Dist Voltage: Not applicable
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 2.08A
  • Full Load Amp Minimum: 2.08A
  • Enclosure: Open
  • Relay Style: Not applicable
  • Coil Voltage Minimum: 120V
  • Wire: Not applicable
  • Amperage Maximum: 2.08A
  • Amperage Minimum: 2.08A
  • Nema Rating: Not applicable
  • Switch Style: Not applicable
  • Wire Size: 14 AWG (typical)
  • Certification: UL, CSA, REACH, RoHS
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single phase
  • Standards: UL 5085, CSA C22.2 No. 66
  • Compatible Frames: 9070 series
  • Installation Type: Panel mount
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Not applicable
  • Current Rating: 2.08A
  • Reverse Standoff Voltage: Not applicable
  • Watts: 250 VA
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 55°C rise
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 785901905837
  • GTIN: 00785901905837
