Square D 9070T1500D1 - Control Transformer 1500VA 240/480V
Square D 9070T1500D1 - Control Transformer 1500VA 240/480V

Square D 9070T1500D1 - Control Transformer 1500VA 240/480V

Square D
Price
Save $68.66
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

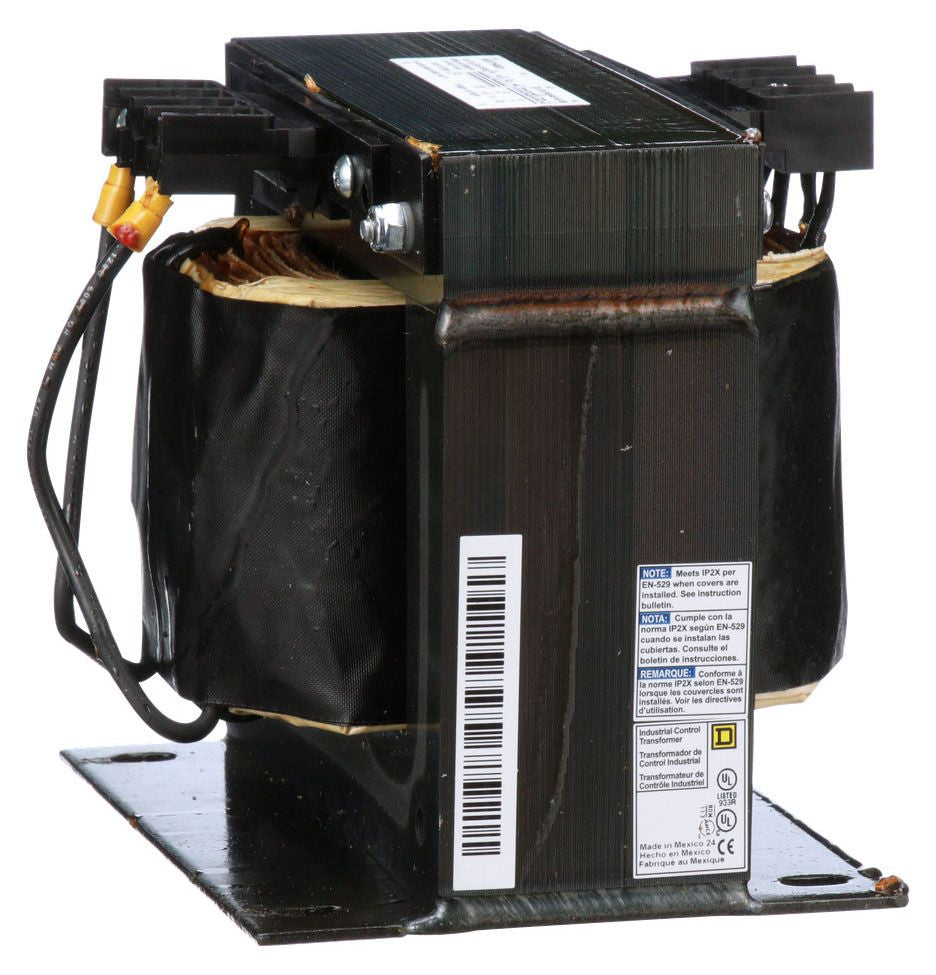

Square D 9070T1500D1 is an industrial control transformer designed for voltage conversion in motor control circuits. It accepts 240/480V primary input to deliver 120V secondary output with a 1500VA power rating in single-phase operation. The unit measures 6.17 in (156.72 mm) x 7.06 in (179.32 mm) x 5.92 in (150.37 mm) and weighs 36.75 lb, featuring copper windings, screw clamp terminals, and foot mounting for secure installation. It is UL Listed File E61239, CSA Certified File LR37055 Guide 184-N-90, and compliant with REACH and RoHS standards. This transformer is suited for industrial control circuits requiring reliable voltage step-down in motor control panels and automation systems.

Key Features & Specifications
  • Type: Control Transformer
  • Power Rating: 1500VA
  • Phases: 1
  • Primary Voltage: 240/480V
  • Secondary Voltage: 120V
  • Mounting Type: Foot (industrial)
  • Terminal Type: Screw clamp
  • Temperature Rise: 115°C
  • Winding Material: Copper
  • Dimensions: 6.17 in (156.72 mm) x 7.06 in (179.32 mm) x 5.92 in (150.37 mm) (Height x Width x Depth)
  • Weight: 36.75 lb
  • Country of Origin: Mexico
  • Certification: CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
  • Section: Control


Product Identification
  • UPC: 785901876021
  • GTIN: 10047503183341
