Square D 9070T1000D18 - Control Transformer 600V/120V 1000VA
Square D 9070T1000D18 - Control Transformer 600V/120V 1000VA

Square D 9070T1000D18 - Control Transformer 600V/120V 1000VA

Square D
Price
Save $73.69
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

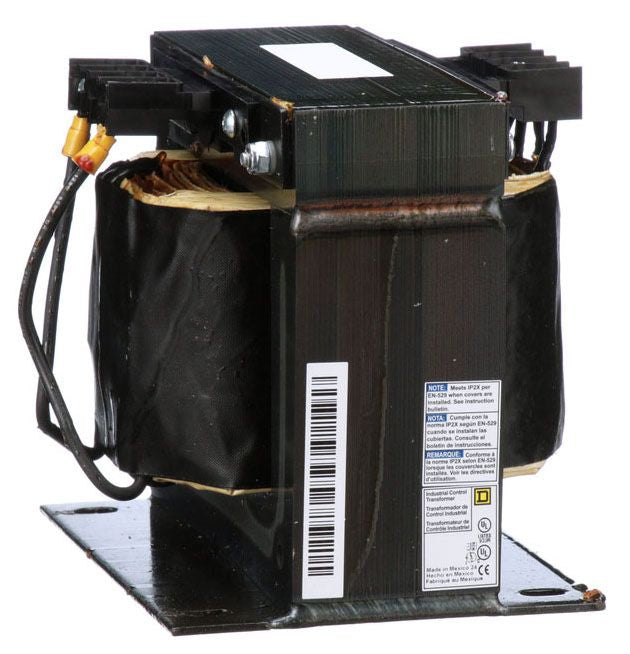

The Square D 9070T1000D18 is a general-purpose industrial control transformer designed to step down primary line voltage to a lower secondary voltage for control circuits. This unit is rated for a maximum primary voltage of 600V and a secondary voltage of 120V, with a power rating of 1000 VA. Housed in a robust steel enclosure, the transformer measures 6.16 inches in height, 7.06 inches in width, and 5.81 inches in depth, weighing 30.5 pounds. It is manufactured in the United States by Schneider Electric, complying with UL and CSA standards for industrial safety and performance. Typical applications include providing isolated power for motor control centers, programmable logic controllers, and other automation equipment in manufacturing and process industries.

Key Features & Specifications
  • Type: Industrial control transformer, encapsulated coil, copper windings
  • Voltage Rating: 600V primary / 120V secondary
  • Current Rating: 1000 VA
  • Dimensions: 6.16 in (156.46 mm) x 7.06 in (179.32 mm) x 5.81 in (147.57 mm) (Height x Width x Depth)
  • Standards: UL Listed, CSA Certified
  • Applications: Motor control centers, PLC power supplies, industrial automation
  • Frequency Rating: 50/60 Hz
  • Coil Material: Copper
  • Enclosure: Steel, open style
  • Mounting: Panel mount
  • Phase: Single
  • Insulation Temperature: Class 180 (H)
  • Weight: 30.5 lb


Product Identification
  • UPC: 78590139806
  • GTIN: 00785901398066
