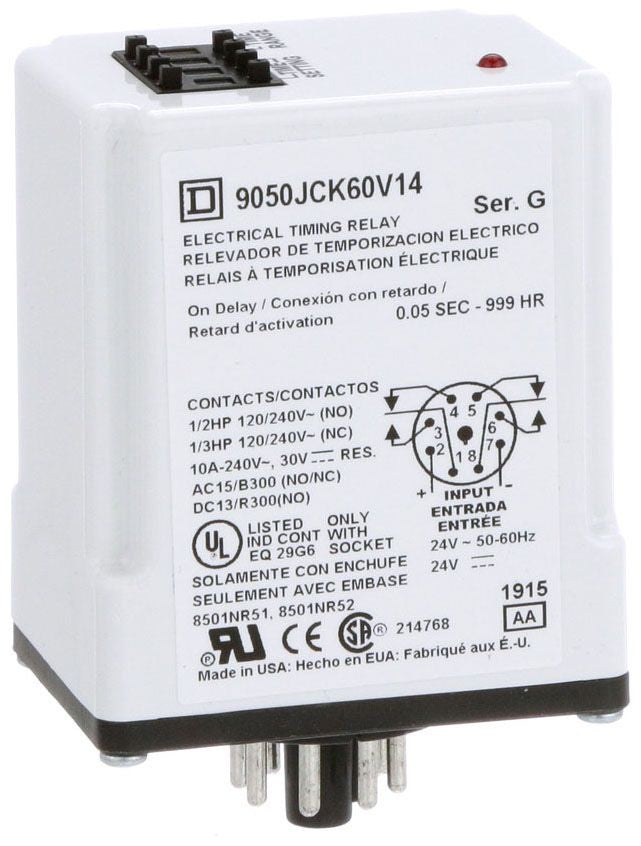

Schneider Electric 9050JCK60V14 - On-Delay Timer Relay 10A DPDT
Schneider Electric 9050JCK60V14 - On-Delay Timer Relay 10A DPDT

Schneider Electric 9050JCK60V14 - On-Delay Timer Relay 10A DPDT

Square D
Price
Save $-171.53
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric 9050JCK60V14 is an on-delay timer relay designed for precise timing control in industrial automation applications. This DPDT (double pole double throw) relay features a 10 amp current rating and dual voltage coil operation at 240 VAC or 24 VAC/DC, with a programmable timing range from 0.5 seconds to 999 hours and ±0.1% repeat accuracy. The unit utilizes an 8-pin plug-in terminal type for socket mounting, weighs 0.27 lb, and operates reliably within a temperature range of -18 to 150 degrees Fahrenheit. It is CE Certified, CSA Certified, UL Listed, and UL Recognized, ensuring compliance with international safety and performance standards. Typical applications include motor control sequencing, conveyor system timing, and process automation in manufacturing environments.

Key Features & Specifications
  • Type: On-Delay Timer Relay
  • Contact Configuration: DPDT (2 Form C)
  • Coil Voltage: 240 VAC / 24 VAC/DC
  • Current Rating: 10 Amps
  • Timing Range: 0.5 seconds to 999 hours
  • Terminal Type: 8 Pin Plug-In
  • Mounting: Socket Mount
  • Repeat Accuracy: ±0.1%
  • Operating Temperature: -18 to 150 °F
  • Weight: 0.27 lb
  • Certification: CE Certified, CSA Certified, UL Listed, UL Recognized
  • Country of Origin: United States


Product Identification
  • UPC: 7.85901E+11
  • GTIN: 7.85901E+11
