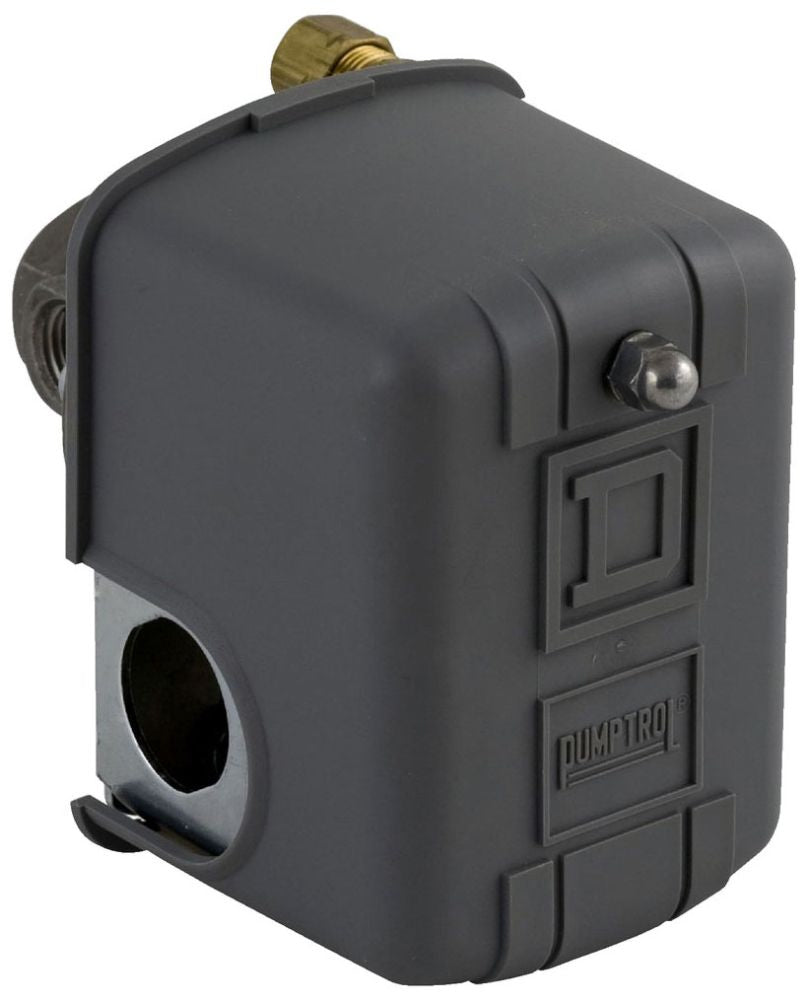

Telemecanique 9013FHG49J59X - Pressure Switch 100-200 psi (575VAC)
Telemecanique 9013FHG49J59X - Pressure Switch 100-200 psi (575VAC)

Telemecanique 9013FHG49J59X - Pressure Switch 100-200 psi (575VAC)

Telemecanique
Price
Save $-1.10
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Telemecanique 9013FHG49J59X is an electro-mechanical pressure switch from the Pumptrol series, designed for air compressor control and low HP system protection. It operates with a 100-200 psi pressure range, 2NC DPST-DB snap-action contacts, and a diaphragm actuator, rated for 575VAC and 10A with a 1HP interrupt rating. The unit features a 1/4" NPT external connection, screw clamp mounting, and a 2-way pressure release valve, with dimensions of 2.78 in W x 3.76 in D x 3.92 in H and a weight of 1 lb. It is certified to ANSI/NSF Standard 61, CSA, FDA 21CFR.2600, NEC Article 430-84, and UL 508, making it suitable for general purpose indoor industrial and commercial applications.

Key Features & Specifications
  • Type: Pressure switch
  • Series: Pumptrol
  • Pressure Range: 100-200 psi
  • Contact Configuration: 2NC DPST-DB
  • Connection Type: 1/4" NPT external
  • Mounting Type: Screw Clamp
  • Rated Voltage: 575VAC
  • Rated Current: 10A
  • Interrupt Rating: 1HP
  • Actuator Type: Diaphragm
  • Dimensions: 2.78 in W x 3.76 in D x 3.92 in H
  • Weight: 1 lb
  • Certification: ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901051183
  • GTIN: 785901051183
